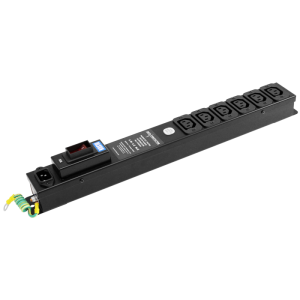

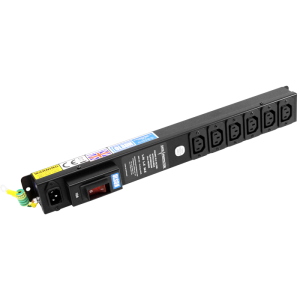

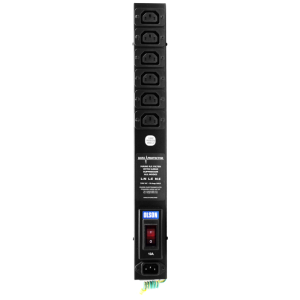

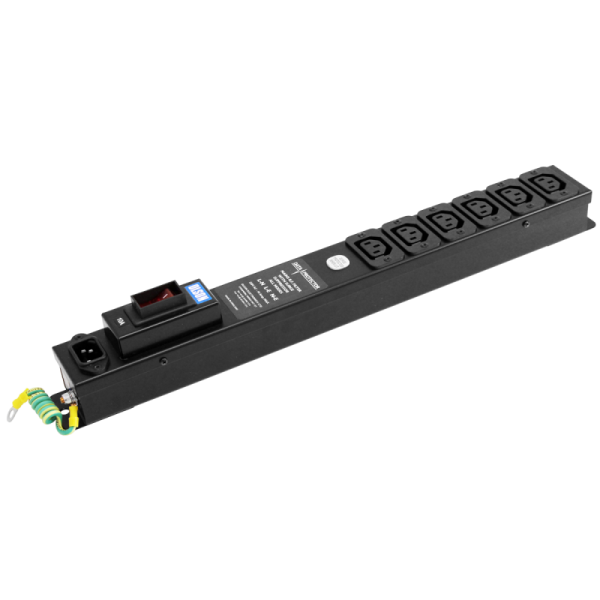

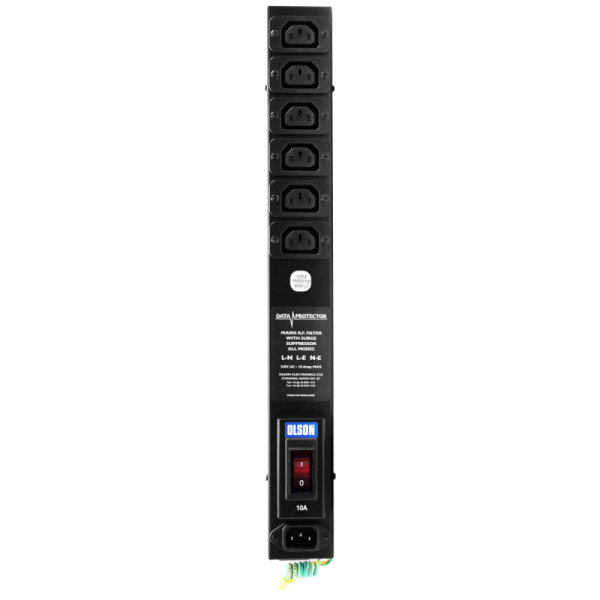

6 Way 10A IEC C13 Sockets C14 Inlet Circuit Breaker RF Filtered Surge Protected PDU

6 Way 10A IEC C13 Sockets C14 Inlet Circuit Breaker RF Filtered Surge Protected PDU

£122.08 Excl. VAT

In stock

£122.08 Excl. VAT

Part No. 6A/08CBSF

• Steel construction finished in black powder coating
• Brackets on each side for easy fixing/installation
• 10A IEC 60320 C14 inlet
• Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
• High-integrity dual earthing
• 10A red illuminated circuit breaker
• 10A RF filter
• Surge Protection with operating voltage 275VAC rms
• IEC 60320 C13 10A rated Sockets

Surge Filter:
• The surge filter is provided with a neon light to indicate operation. If the neon is not glowing, the surge filter is no longer operational and must be replaced to maintain over voltage protection
• All modes L-N, L-E, N-E
• Maximum operating voltage – 275V rms ac
• Transient energy absorption – 3 x 140J
• Transient peak current – (8/20uS) – 6500A
• Impulse response time – <50nS
• Varistor voltage @ 1mA dc test current – 430V
• Maximum clamping voltage @ 100A (8/20uS) – 710V

View cart
Compare

Additional information

Previous Part No.

6A/6CBSF

Product Range

Filter / Surge Protection Range

Orientation

Vertical

Socket Outlet Type

C13 10A IEC 60320

Number of Sockets

6

Neon

Yes

Switched

Main Switch

Fuse Holder

No

Individually Fused

No

Cable Length

No Cable Supplied

Plug Inlet Type

Colour

Black (RAL 9005)

Current Rating

10A max

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Manufactured To

BS 5733

Socket Outlet Compliance

IEC 60320 C13 10A (CEE22)

Cable Compliance

BS 6500

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

1.1

Height (mm)

473

Width (mm)

53

Depth (mm)

40; 75 inc CB

Digital Power Meter

None
