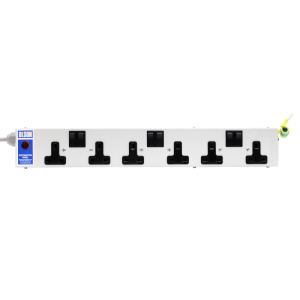

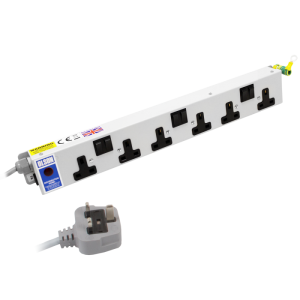

6 Way 13A Individually Switched Neon Fused PDU
£108.46 Excl. VAT
Part No. DP13A/06SW
• A robust mild steel construction
• Light grey RAL 7035 paint finish
• Internal wiring 2.5mm² – 20A rating
• Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
• Red neon “mains on” indicator
• Panel mounted 7A fuse
• Brackets on each side for easy fixing/installation
• 2m cable – PVC (1.5mm² 3 core) terminated with a 13A fused plug
Compare
- Additional information
Additional information
| Previous Part No. | DP13A/6SW |
|---|---|
| Product Range | Fused Super Slim |
| Orientation | Horizontal |
| Socket Outlet Type | UK 13A |
| Number of Sockets | 6 |
| Neon | Yes |
| Switched | Individually Switched |
| Fuse Holder | Yes |
| Fuse Rating | 7A |
| Individually Fused | No |
| Cable Length | 2M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 13A |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | 13 Amp Sockets – BS 1363 |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 1.5 |
| Height (mm) | 65 |
| Width (mm) | 484 |
| Depth (mm) | 38 |
| Fixing Centres | 468 |
| Digital Power Meter | None |
