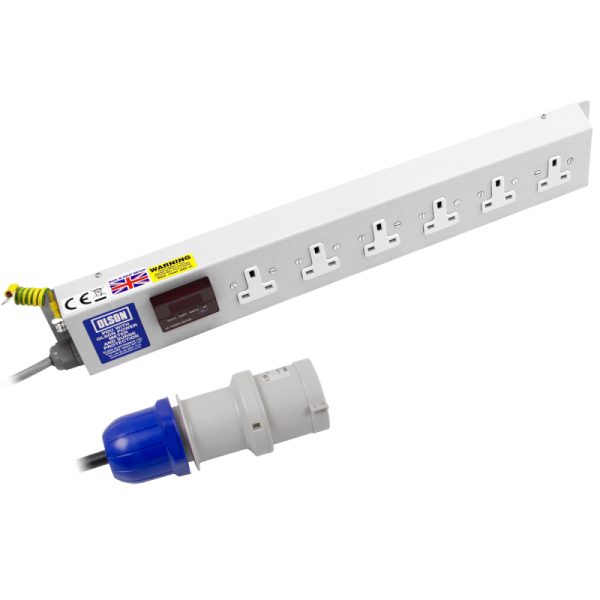

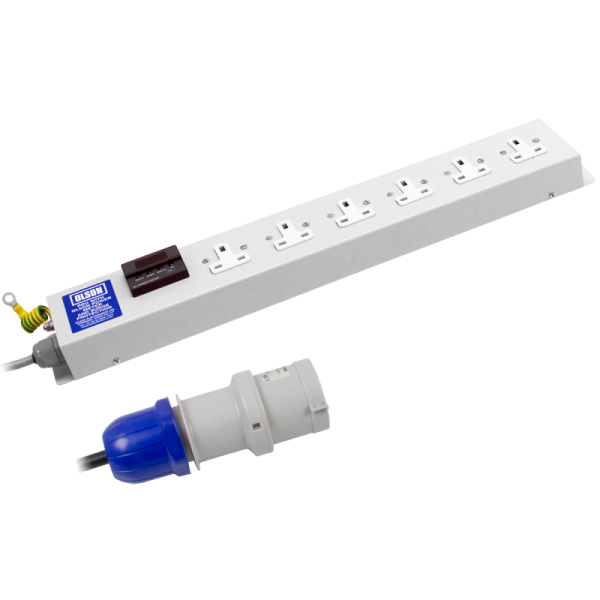

6 Way 13A Power Metered & Surge Protected 32A Plug PDU
£168.29 Excl. VAT
Part No. PM/N13A/6/32
• Incorporating the Olson Deluxe Power Meter
• Surge Protection Varistors
• A robust steel construction
• Light grey RAL 7035 paint finish
• High integrity dual earthing and external M5 earth stud with 250mm long earth lead
• 3m of 3 core cable with a 32A IEC 60309 (IEC309 / BS4343 / Commando) plug
• A digital meter with easy to read 9.4mm high digits
The Deluxe Power Meter Features:
• Monitor Amps, volts, watts and P.F. (all True RMS)
• The ability to either automatically scroll through the four values or to select the parameter to be displayed
• 4x LEDs to easily identify what parameter is being measured
• Accuracy 1% amps, volts, 2% Watts, 3% P.F.
- Additional information
Additional information
| Product Range | Meter Range |
|---|---|
| Orientation | Horizontal |
| Socket Outlet Type | UK 13A |
| Number of Sockets | 6 |
| Neon | No |
| Switched | Unswitched |
| Fuse Holder | No |
| Individually Fused | No |
| Cable Length | 3M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 32A max. |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | 13 Amp Sockets – BS 1363 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 2.78 |
| Height (mm) | 78 |
| Width (mm) | 545 |
| Depth (mm) | 45 |
| Fixing Centres | 528 |
| Digital Power Meter | Digital Power Meter |
