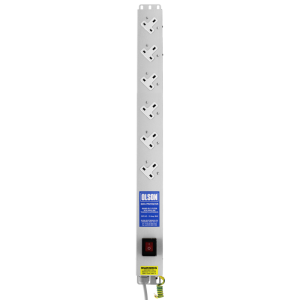

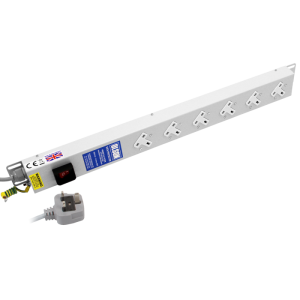

6 Way 13A Sockets Angled Left RF Filtered Surge Protected Illuminated Main Switch PDU

6 Way 13A Sockets Angled Left RF Filtered Surge Protected Illuminated Main Switch PDU

£120.27 Excl. VAT

In stock

£120.27 Excl. VAT

Part No. FU06LH/MS

• Illuminated double pole incoming power switch
• Strong steel case finished in light grey RAL 7035
• Terminated with 2m of 3 core 1.5mm² cable and 13A fused plug
• Internal wiring 2.5mm² rated 20A
• Earth bonding for maximum safety
• External M5 earth stud with 250mm earth lead
• The essential power distribution source for 19″ rack mounting systems
• The 45 degree angled sockets allow easy, tidy installation

Surge Filter:
• All modes L-N, L-E, N-E
• Maximum operating voltage – 275V rms ac
• Transient energy absorption – 3 x 140J
• Transient peak current – (8/20uS) – 6500A
• Impulse response time – <50nS
• Varistor voltage @ 1mA dc test current – 430V
• Maximum clamping voltage @ 100A (8/20uS) – 710V

RF Filter:
• Operating voltage up to 250V at max 400Hz
• Filter rated current 10A @ 400ºC, 11.5A @ 25ºC
• Leakage current 2 x 0.2mA max @ 220V 50Hz
• Fitted with ZNR voltage transient and earthline choke
• Standard spec. Z280G
• Max continuous voltage 320V AC rms @ 25ºC
• Max continuous voltage 416V DC @25ºC
• Varistor 450V min @ 1mA
• Energy 140 Joules 10/10000
• 800V clamping voltage @ 100A
• Max 800mW continuous
• UL, CSA, VDE

View cart
Compare

Additional information

Previous Part No.

FU6LH/MS

Product Range

13A with Sockets Angled 45? Left or Right with Filter

Orientation

Vertical

Socket Outlet Type

UK 13A

Number of Sockets

6

Neon

Yes

Switched

Main Switch

Fuse Holder

No

Individually Fused

No

Cable Length

2M

Plug Inlet Type

Colour

Light Grey (RAL 7035)

Current Rating

13A max

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Manufactured To

BS 5733

Socket Outlet Compliance

13 Amp Sockets – BS 1363

Cable Compliance

BS 6500

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

1.924

Height (mm)

700

Width (mm)

62

Depth (mm)

40

Digital Power Meter

None
