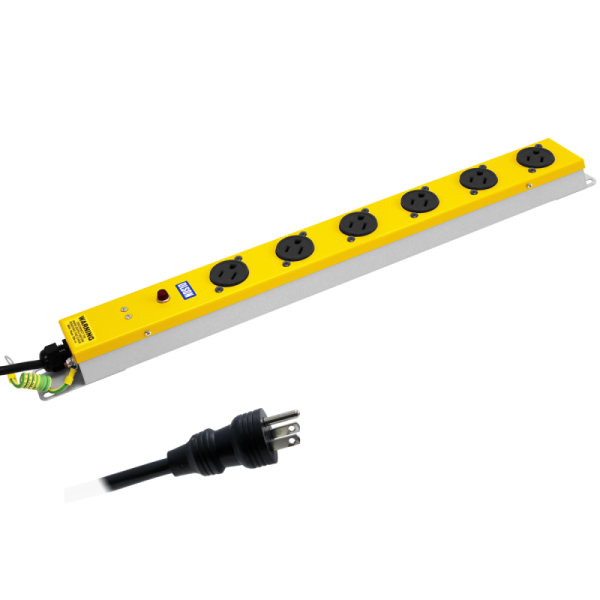

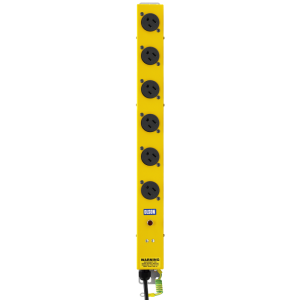

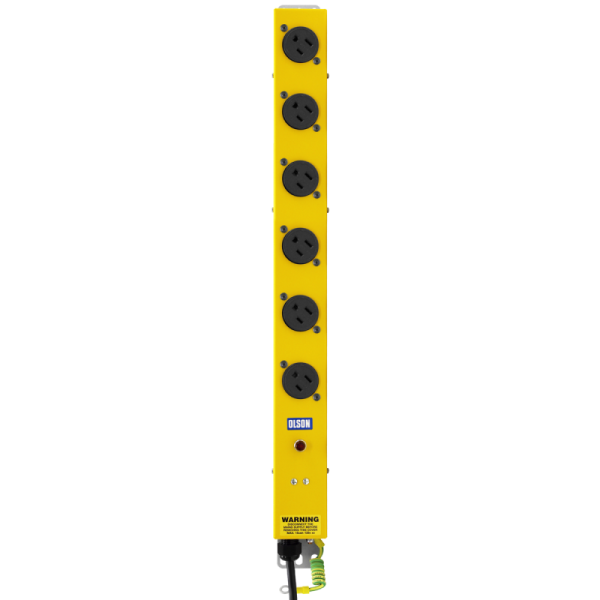

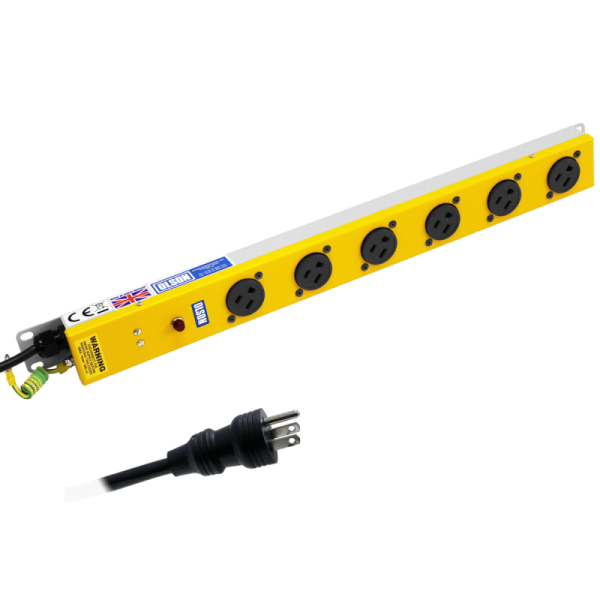

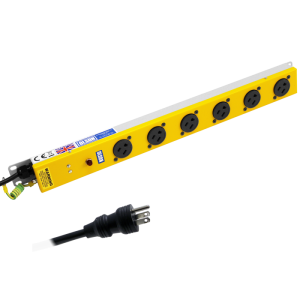

6 Way Vertical 15A American Neon Nema 5-15 Plug PDU
£109.31 Excl. VAT
Part No. 15A/06
- A robust mild steel construction
- Elegant two tone paint finish with the panel in yellow and a grey case
- Internal wiring 20A rated
- Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
- Red neon “mains on” indicator
- Brackets on each side for easy fixing/installation
- 2m cable: PVC (1.5mm² 3 core) terminated with a 15A Nema 5-15 American plug
Compare
- Additional information
Additional information
| Previous Part No. | 15A/6 |
|---|---|
| Product Range | International Range |
| Orientation | Vertical |
| Socket Outlet Type | American 15A (Nema 5-15) |
| Number of Sockets | 6 |
| Neon | Yes |
| Switched | Unswitched |
| Fuse Holder | No |
| Individually Fused | No |
| Cable Length | 2M |
| Plug Inlet Type | |
| Colour | Light Grey Case (RAL 7035), Yellow Panel (RAL 1012) |
| Current Rating | 15A |
| Operating Voltage | Normal Operating Voltage: 110VAC – Maximum Operating Voltage: 125VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | Nema 5-15 |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 1.35 |
| Height (mm) | 553 |
| Width (mm) | 50 |
| Depth (mm) | 40 |
| Digital Power Meter | None |
