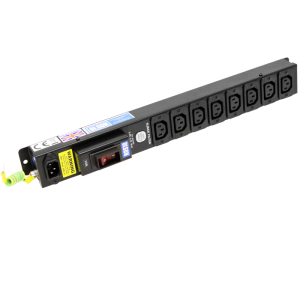

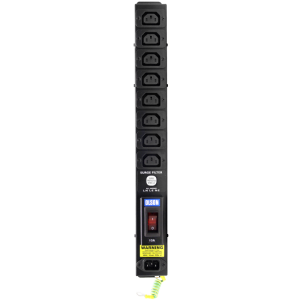

8 Way 10A IEC C13 Sockets C14 Inlet Circuit Breaker Surge Protected PDU
£111.23 Excl. VAT
Part No. 6A/08CBS
• Steel construction finished in black powder coating
• Brackets on each side for easy fixing/installation
• 10A IEC 60320 C14 inlet
• Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
• High-integrity dual earthing
• 10A red illuminated circuit breaker
• Surge Protection with operating voltage 275VAC rms
• IEC 60320 C13 10A rated Sockets
Surge Filter:
• The surge filter is provided with a neon light to indicate operation. If the neon is not glowing, the surge filter is no longer operational and must be replaced to maintain over voltage protection
• All modes L-N, L-E, N-E
• Maximum operating voltage – 275V rms ac
• Transient energy absorption – 3 x 140J
• Transient peak current – (8/20uS) – 6500A
• Impulse response time – <50nS
• Varistor voltage @ 1mA dc test current – 430V
• Maximum clamping voltage @ 100A (8/20uS) – 710V
- Additional information
Additional information
| Previous Part No. | 6A/8CBS |
|---|---|
| Product Range | Filter / Surge Protection Range |
| Orientation | Vertical |
| Socket Outlet Type | C13 10A IEC 60320 |
| Number of Sockets | 8 |
| Neon | Yes |
| Switched | Main Switch |
| Fuse Holder | No |
| Individually Fused | No |
| Cable Length | No Cable Supplied |
| Plug Inlet Type | |
| Colour | Black (RAL 9005) |
| Current Rating | 10A max |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | IEC 60320 C13 10A (CEE22) |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 1.1 |
| Height (mm) | 473 |
| Width (mm) | 53 |
| Depth (mm) | 40; 75 inc CB |
| Digital Power Meter | None |
