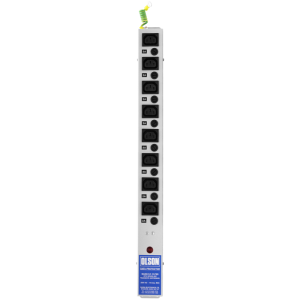

8 Way 10A IEC C13 Sockets Individually Fused RF Filtered Surge Protected Neon C14 Inlet PDU - Image 2
8 Way 10A IEC C13 Sockets Individually Fused RF Filtered Surge Protected Neon C14 Inlet PDU - Image 3
8 Way 10A IEC C13 Sockets Individually Fused RF Filtered Surge Protected Neon C14 Inlet PDU - Image 4

8 Way 10A IEC C13 Sockets Individually Fused RF Filtered Surge Protected Neon C14 Inlet PDU

8 Way 10A IEC C13 Sockets Individually Fused RF Filtered Surge Protected Neon C14 Inlet PDU

£161.55 Excl. VAT

In stock

£161.55 Excl. VAT

Part No. FU39008

  • A robust mild steel construction with light grey RAL 7035 paint finish
  • IEC 60320 C13 10A shuttered sockets
  • Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
  • Red LED “mains on” indicator
  • Individually fused with 2A 20mm fuse
  • Brackets on each side for easy fixing/installation
  • IEC 60320 C14 10A Inlet
  • 10A RF filter (data filter)

Surge Filter:

  • All modes L-N, L-E, N-E
  • Maximum operating voltage – 275V rms ac
  • Transient energy absorption – 3 x 140J
  • Transient peak current – (8/20uS) – 6500A
  • Impulse response time – <50nS
  • Varistor voltage @ 1mA dc test current – 430V
  • Maximum clamping voltage @ 100A (8/20uS) – 710V

    • RF Filter:

  • Operating voltage up to 250V at max 400Hz
  • Filter rated current 10A @ 400ºC, 11.5A @ 25ºC
  • Leakage current 2 x 0.2mA max @ 220V 50Hz
  • Fitted with ZNR voltage transient and earthline choke
  • Standard spec. Z280G
  • Max continuous voltage 320V AC rms @ 25ºC
  • Max continuous voltage 416V DC @25ºC
  • Varistor 450V min @ 1mA
  • Energy 140 Joules 10/10000
  • 800V clamping voltage @ 100A
  • Max 800mW continuous
  • UL, CSA, VDE
    • Compare

    Additional information

    Product Range

    IEC 60320 C13 Individually Fused Sockets
    Orientation

    Vertical
    Socket Outlet Type

    C13 10A IEC 60320
    Number of Sockets

    8
    Neon

    Yes
    Switched

    Unswitched
    Fuse Holder

    Yes
    Fuse Rating

    2A
    Fuse Link

    Plug Fuse-link 13A – ASTA BS1362
    Individually Fused

    Yes
    Cable Length

    No Cable Supplied
    Plug Inlet Type

    Colour

    Light Grey (RAL 7035)
    Current Rating

    10A max.
    Operating Voltage

    Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC
    Manufactured To

    BS 5733
    Socket Outlet Compliance

    CSA, IEC 60320 C13 10A Shuttered (BEAB, UL, VDE)
    UKCA / CE Compliant

    Yes
    RoHs Compliant

    Yes
    Country of Manufacture

    United Kingdom
    Weight KGs

    1.55
    Height (mm)

    583
    Width (mm)

    50
    Depth (mm)

    40
    Digital Power Meter

    None
