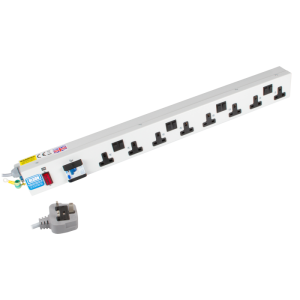

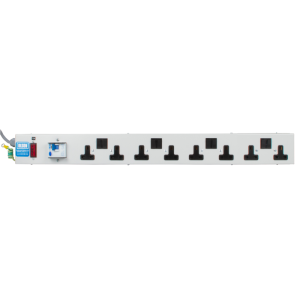

8 Way 13A Individually Switched Fused RCD Protected PDU
£245.98 Excl. VAT
Part No. 2008/30
- A robust mild steel construction
- Light grey RAL 7035 paint finish
- Internal wiring 2.5mm² – 20A rating
- Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
- Flat units have brackets on each side for easy fixing and installation
- 2m cable – PVC 1.5mm² 3 core terminated with a 13A fused plug
- Panel mounted fuse holder and 30mA RCD (RCD brands may vary)
Compare
- Additional information
Additional information
| Product Range | Fused with RCD Protection |
|---|---|
| Orientation | Horizontal |
| Socket Outlet Type | UK 13A |
| Number of Sockets | 8 |
| Neon | Yes |
| Switched | Individually Switched |
| Fuse Holder | Yes |
| Individually Fused | No |
| Cable Length | 2M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 13A |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | 13 Amp Sockets – BS 1363 |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 2.7 |
| Height (mm) | 75 |
| Width (mm) | 755 |
| Depth (mm) | 45 |
| Fixing Centres | 740 |
| Digital Power Meter | None |
