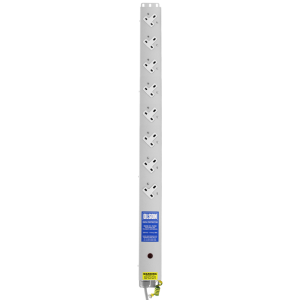

8 Way 13A Sockets Angled Left RF Filtered Surge Protected Neon PDU - Image 2

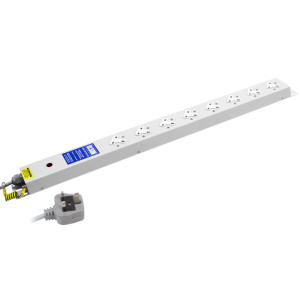

8 Way 13A Sockets Angled Left RF Filtered Surge Protected Neon PDU - Image 3

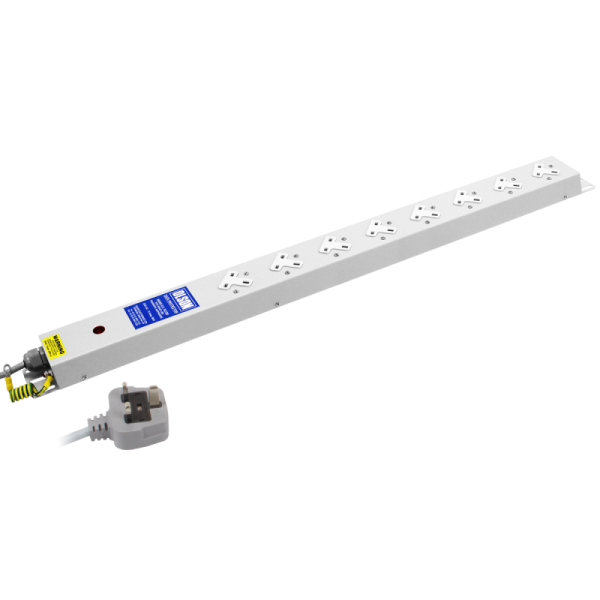

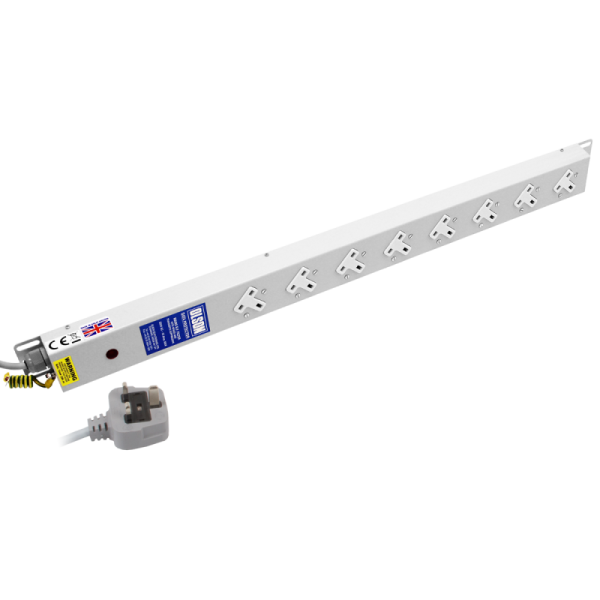

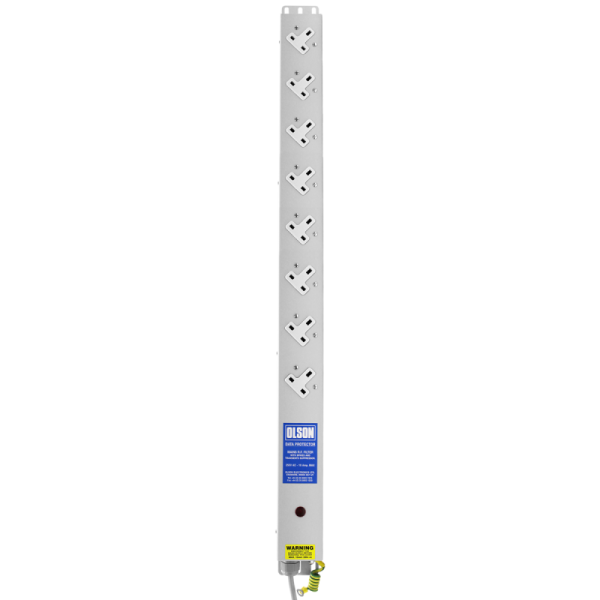

8 Way 13A Sockets Angled Left RF Filtered Surge Protected Neon PDU

8 Way 13A Sockets Angled Left RF Filtered Surge Protected Neon PDU

£168.36 Excl. VAT

In stock

£168.36 Excl. VAT

Part No. FU08LH/N

  • Neon incoming power indicator
  • Strong steel case finished in light grey RAL 7035
  • Terminated with 2m of 3 core 1.5mm² cable and 13A fused plug
  • Internal wiring 2.5mm² rated 20A
  • Earth bonding for maximum safety
  • External M5 earth stud with 250mm earth lead
  • The essential power distribution source for 19″ rack mounting systems
  • The 45 degree angled sockets allow easy, tidy installation

Surge Filter:

  • All modes L-N, L-E, N-E
  • Maximum operating voltage – 275V rms ac
  • Transient energy absorption – 3 x 140J
  • Transient peak current – (8/20uS) – 6500A
  • Impulse response time – <50nS
  • Varistor voltage @ 1mA dc test current – 430V
  • Maximum clamping voltage @ 100A (8/20uS) – 710V

    • RF Filter:

  • Operating voltage up to 250V at max 400Hz
  • Filter rated current 10A @ 400ºC, 11.5A @ 25ºC
  • Leakage current 2 x 0.2mA max @ 220V 50Hz
  • Fitted with ZNR voltage transient and earthline choke
  • Standard spec. Z280G
  • Max continuous voltage 320V AC rms @ 25ºC
  • Max continuous voltage 416V DC @25ºC
  • Varistor 450V min @ 1mA
  • Energy 140 Joules 10/10000
  • 800V clamping voltage @ 100A
  • Max 800mW continuous
  • UL, CSA, VDE
    • Compare

    Additional information

    Previous Part No.

    FU8LH/N
    Product Range

    13A with Sockets Angled 45? Left or Right with Filter
    Orientation

    Vertical
    Socket Outlet Type

    UK 13A
    Number of Sockets

    8
    Neon

    Yes
    Switched

    Unswitched
    Fuse Holder

    No
    Individually Fused

    No
    Cable Length

    2M
    Plug Inlet Type

    Colour

    Light Grey (RAL 7035)
    Current Rating

    13A max
    Operating Voltage

    Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC
    Manufactured To

    BS 5733
    Socket Outlet Compliance

    13 Amp Sockets – BS 1363
    Cable Compliance

    BS 6500
    UKCA / CE Compliant

    Yes
    RoHs Compliant

    Yes
    Country of Manufacture

    United Kingdom
    Weight KGs

    2.4
    Height (mm)

    833
    Width (mm)

    62
    Depth (mm)

    40
    Digital Power Meter

    None
