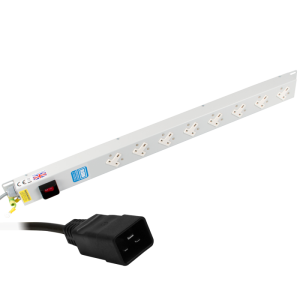

8 Way 13A Sockets Angled Right Illuminated Main Switch C20 Plug PDU
£126.05 Excl. VAT
Part No. 08RH/MS/2M/C20
- Sockets angled 45 degrees to the right (when vertically mounted)
- Illuminated double pole power switch
- Strong steel case finished in light grey RAL 7035
- 2m of cable with a 16A IEC 60320 C20 Plug
- Internal wiring rated 20A
- Earth bonding for maximum safety
- External M5 earth stud with 250mm earth lead
- The essential power distribution source for 19″ rack mounting systems
- Ideal for vertical use and available in 8 different sizes
- The 45 degree angled sockets allow easy, tidy installation
Compare
- Additional information
Additional information
| Product Range | Left/Right Cabled Distribution Panels |
|---|---|
| Orientation | Vertical |
| Socket Outlet Type | UK 13A |
| Number of Sockets | 8 |
| Neon | Yes |
| Switched | Main Switch |
| Fuse Holder | No |
| Individually Fused | No |
| Cable Length | 2M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 16A max. |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | 13 Amp Sockets – BS 1363 |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 2.47 |
| Height (mm) | 803 |
| Width (mm) | 62 |
| Depth (mm) | 40 |
| Digital Power Meter | None |
