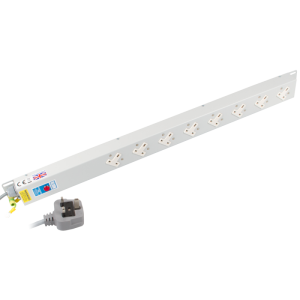

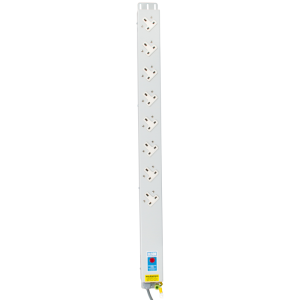

8 Way 13A Sockets Angled Right Neon 13A Plug PDU

8 Way 13A Sockets Angled Right Neon 13A Plug PDU

£95.00 Excl. VAT

In stock

£95.00 Excl. VAT

Part No. 08RH/N

• Sockets angled 45 degrees to the right (when vertically mounted)
• Neon incoming power indicator
• Strong steel case finished in light grey RAL 7035
• Terminated with 2m of 3 core 1.5mm² cable and 13A fused plug
• Internal wiring rated 20A
• Earth bonding for maximum safety
• External M5 earth stud with 250mm earth lead
• The essential power distribution source for 19″ rack mounting systems
• Ideal for vertical use and available in 8 different sizes
• The 45° angled sockets allow easy, tidy installation;

View cart
Compare

Additional information

Product Range

Left/Right Cabled Distribution Panels

Orientation

Vertical

Socket Outlet Type

UK 13A

Number of Sockets

8

Neon

Yes

Switched

Unswitched

Fuse Holder

No

Individually Fused

No

Cable Length

2M

Plug Inlet Type

Colour

Light Grey (RAL 7035)

Current Rating

13A max

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Manufactured To

BS 5733

Socket Outlet Compliance

13 Amp Sockets – BS 1363

Cable Compliance

BS 6500

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

2.14

Height (mm)

803

Width (mm)

62

Depth (mm)

40

Digital Power Meter

None
