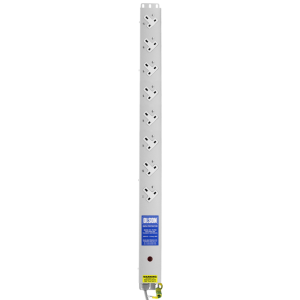

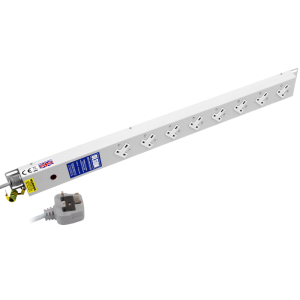

8 Way 13A Sockets Angled Right RF Filtered Surge Protected Neon PDU
£139.90 Excl. VAT
Part No. FU08RH/N
• Neon incoming power indicator
• Strong steel case finished in light grey RAL 7035
• Terminated with 2m of 3 core 1.5mm² cable and 13A fused plug
• Internal wiring 2.5mm² rated 20A
• Earth bonding for maximum safety
• External M5 earth stud with 250mm earth lead
• The essential power distribution source for 19″ rack mounting systems
• The 45 degree angled sockets allow easy, tidy installation
Surge Filter:
• All modes L-N, L-E, N-E
• Maximum operating voltage – 275V rms ac
• Transient energy absorption – 3 x 140J
• Transient peak current – (8/20uS) – 6500A
• Impulse response time – <50nS
• Varistor voltage @ 1mA dc test current – 430V
• Maximum clamping voltage @ 100A (8/20uS) – 710V
RF Filter:
• Operating voltage up to 250V at max 400Hz
• Filter rated current 10A @ 400ºC, 11.5A @ 25ºC
• Leakage current 2 x 0.2mA max @ 220V 50Hz
• Fitted with ZNR voltage transient and earthline choke
• Standard spec. Z280G
• Max continuous voltage 320V AC rms @ 25ºC
• Max continuous voltage 416V DC @25ºC
• Varistor 450V min @ 1mA
• Energy 140 Joules 10/10000
• 800V clamping voltage @ 100A
• Max 800mW continuous
• UL, CSA, VDE
- Additional information
Additional information
| Previous Part No. | FU8RH/N |
|---|---|
| Product Range | 13A with Sockets Angled 45? Left or Right with Filter |
| Orientation | Vertical |
| Socket Outlet Type | UK 13A |
| Number of Sockets | 8 |
| Neon | Yes |
| Switched | Unswitched |
| Fuse Holder | No |
| Individually Fused | No |
| Cable Length | 2M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 13A max |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | 13 Amp Sockets – BS 1363 |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 2.4 |
| Height (mm) | 833 |
| Width (mm) | 62 |
| Depth (mm) | 40 |
| Digital Power Meter | None |
