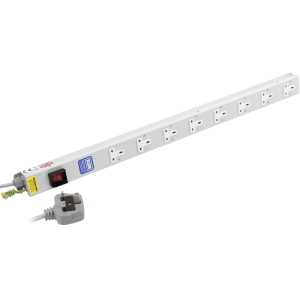

8 Way 13A Vertical Sockets Illuminated Main Switch 13A Plug PDU
£91.43 Excl. VAT
Part No. T13A/08
• Red LED illuminated double pole On/Off switch
• Strong steel case finished in light grey RAL 7035
• Terminated with 2m of 3 core 1.5mm² cable and 13A fused plug
• Internal wiring 2.5mm² – 20A rated
• Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
• Fitted with brackets either side to assist mounting
Compare
- Additional information
Additional information
| Previous Part No. | T13A/8 |
|---|---|
| Product Range | Vertica Distribution Units |
| Orientation | Vertical |
| Socket Outlet Type | UK 13A |
| Number of Sockets | 8 |
| Neon | Yes |
| Switched | Main Switch |
| Fuse Holder | No |
| Individually Fused | No |
| Cable Length | 2M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 13A max |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | 13 Amp Sockets – BS 1363 |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 2 |
| Height (mm) | 742 |
| Width (mm) | 50 |
| Depth (mm) | 40 |
| Fixing Centres | 726 |
| Digital Power Meter | None |
