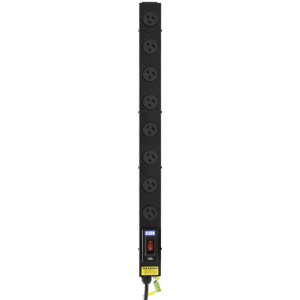

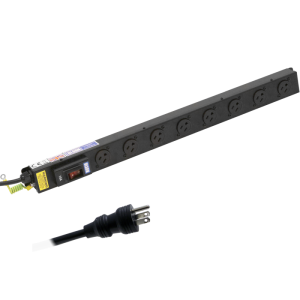

8 Way 15A American Sockets Circuit Breaker Nema 5-15 Plug PDU
£164.79 Excl. VAT
Part No. 15A/08CB
- Steel construction finished in black powder coating
- Brackets on each side for easy fixing/installation
- 2m cable: PVC (1.5mm² 3 core) terminated with a 15A Nema 5-15 American plug
- Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
- High-integrity dual earthing
- 15A red illuminated circuit breaker
Compare
- Additional information
Additional information
| Previous Part No. | 15A/8CB |
|---|---|
| Product Range | 15A American Range with 15A Circuit Breaker |
| Orientation | Vertical |
| Socket Outlet Type | American 15A (Nema 5-15) |
| Number of Sockets | 8 |
| Neon | Yes |
| Switched | Main Switch |
| Fuse Holder | No |
| Individually Fused | No |
| Cable Length | 2M |
| Plug Inlet Type | |
| Colour | Black (RAL 9005) |
| Current Rating | 15A max |
| Operating Voltage | Normal Operating Voltage: 110VAC – Maximum Operating Voltage: 125VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | Nema 5-15 |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 2.3 |
| Height (mm) | 686 |
| Width (mm) | 53 |
| Depth (mm) | 40; 75 inc CB |
| Digital Power Meter | None |
