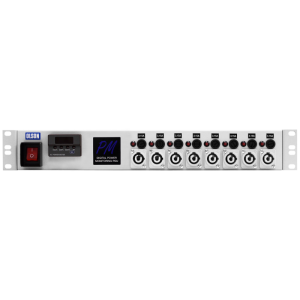

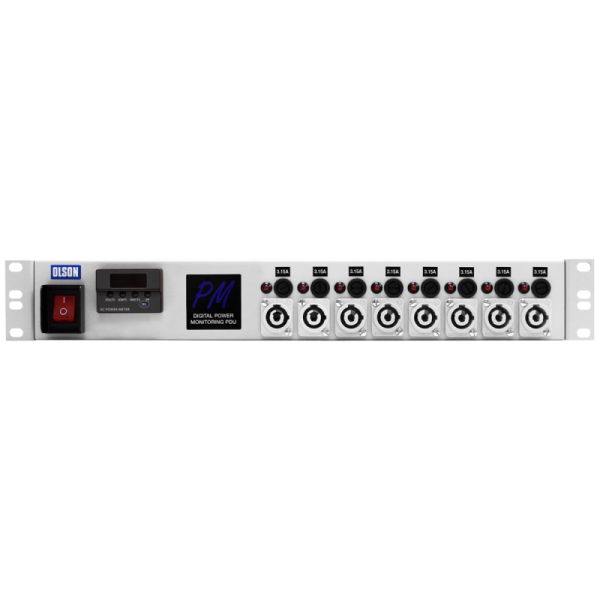

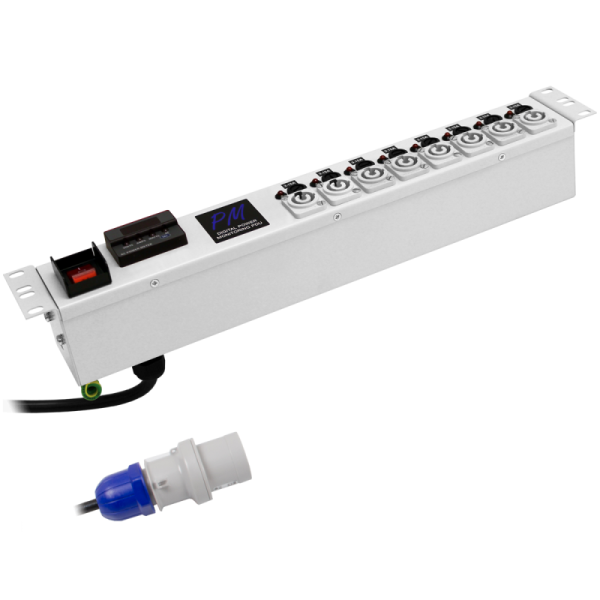

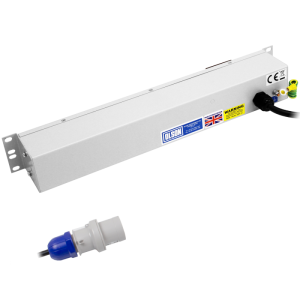

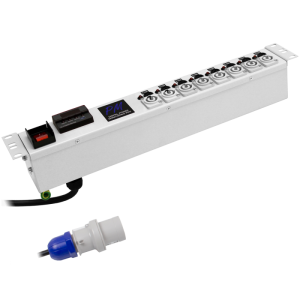

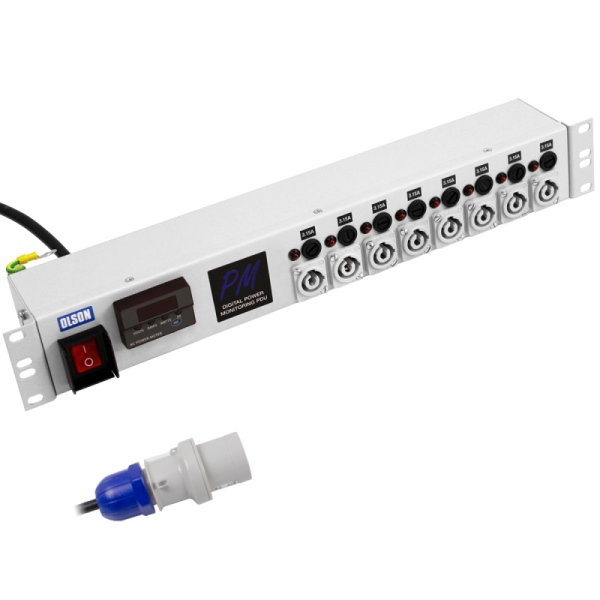

8 Way 19″ 1.5U 20A Neutrik Powercon Individual Neon & Fused Main Switch Power Metered PDU
£306.92 Excl. VAT
Part No. PM1055/16
- A robust mild steel construction
- Light grey RAL 7035 paint finish
- 19″ 1.5U (66.6mm) high
- Neutrik Powercon 20A sockets fused at 3.15A
- Internal wiring 2.5mm² – 20A rating
- High-Integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
- Illuminated mains switch and individually fused sockets
- 30A digital power meter
- 3m of 3 core cable with a 16A IEC 60309 (IEC309 / BS4343 / Commando) plug
- A digital meter with easy to read 9.4mm high digits
The Deluxe Power Meter Features:
Compare
- Additional information
Additional information
| Previous Part No. | AM1055/16 |
|---|---|
| Product Range | PM Meter Range |
| Orientation | Horizontal |
| Socket Outlet Type | Neutrik Powercon 20A |
| Number of Sockets | 8 |
| Neon | Yes |
| Switched | Main Switch |
| Fuse Holder | Yes |
| Fuse Rating | 3.15A |
| Individually Fused | Yes |
| Cable Length | 3M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 20A |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 2.294 |
| Height (mm) | 66.6 (1.5U) |
| Width (mm) | 482.6 (19") |
| Depth (mm) | 70 |
| Digital Power Meter | Digital Power Meter |
