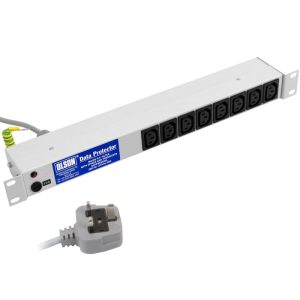

8 Way 19″ 1U 10A IEC 60320 C13 RF Filtered Surge Protected Neon Fused 13A Plug PDU

Part No. FU10A/08

• A robust mild steel construction with light grey RAL 7035 paint finish
• Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
• Red neon “mains on” indicator
• 10A mains filter units 1U high
• Brackets on each side for easy fixing/installation
• 2m cable: PVC (1.5mm² 3 core) terminated with a 13A fused plug (10A fuse with 10A mains filter)

Surge Filter:
• All modes L-N, L-E, N-E
• Maximum operating voltage – 275V rms ac
• Transient energy absorption – 3 x 140J
• Transient peak current – (8/20uS) – 6500A
• Impulse response time – <50nS
• Varistor voltage @ 1mA dc test current – 430V
• Maximum clamping voltage @ 100A (8/20uS) – 710V

RF Filter:
• Operating voltage up to 250V at max 400Hz
• Filter rated current 10A @ 400ºC, 11.5A @ 25ºC
• Leakage current 2 x 0.2mA max @ 220V 50Hz
• Fitted with ZNR voltage transient and earthline choke
• Standard spec. Z280G
• Max continuous voltage 320V AC rms @ 25ºC
• Max continuous voltage 416V DC @25ºC
• Varistor 450V min @ 1mA
• Energy 140 Joules 10/10000
• 800V clamping voltage @ 100A
• Max 800mW continuous
• UL, CSA, VDE
