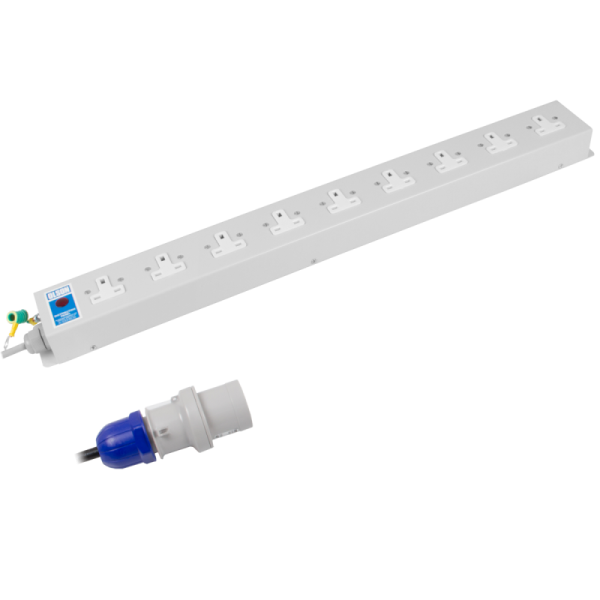

9 Way 13A Unswitched Socket Neon 16A Plug PDU

9 Way 13A Unswitched Socket Neon 16A Plug PDU

£115.25 Excl. VAT

In stock

£115.25 Excl. VAT

Part No. N13A/09/3M/16A

• The Olson Slim Range is ideal for wall or floor mounting and available in 10 different sizes as standard
• A robust mild steel construction
• Light grey RAL 7035 paint finish
• Internal wiring 2.5mm² – 20A rating
• Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
• Red neon “mains on” indicator
• Brackets on each side for easy fixing/installation
• 3m of 3 core cable with a 16A IEC 60309 (IEC309 / BS4343 / Commando) plug

View cart
Compare

Additional information

Previous Part No.

N13A/9/3M/16A – N13A/9/16

Product Range

13A Slim Range

Orientation

Horizontal

Socket Outlet Type

UK 13A

Number of Sockets

9

Neon

Yes

Switched

Unswitched

Fuse Holder

No

Individually Fused

No

Cable Length

3M

Plug Inlet Type

Colour

Light Grey (RAL 7035)

Current Rating

16A max.

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Socket Outlet Compliance

13 Amp Sockets – BS 1363

Cable Compliance

BS 6500

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

2.456

Height (mm)

78

Width (mm)

695

Depth (mm)

45

Fixing Centres

680

Digital Power Meter

None
