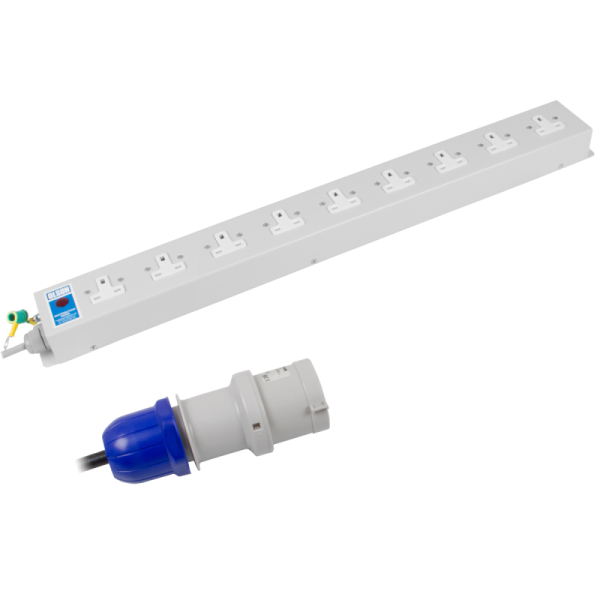

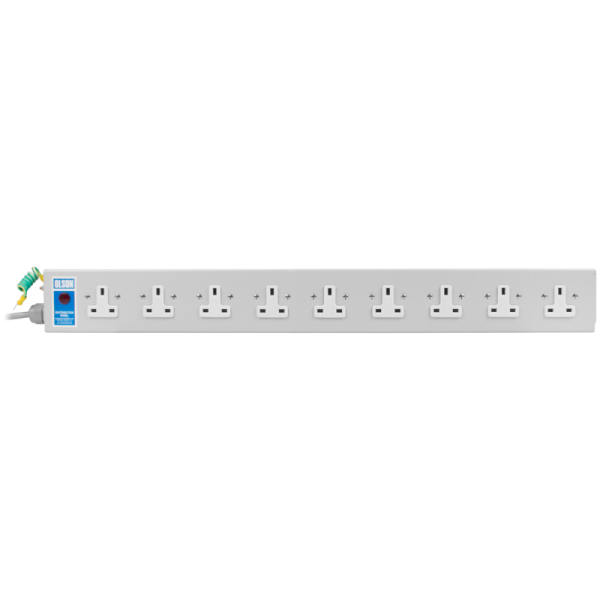

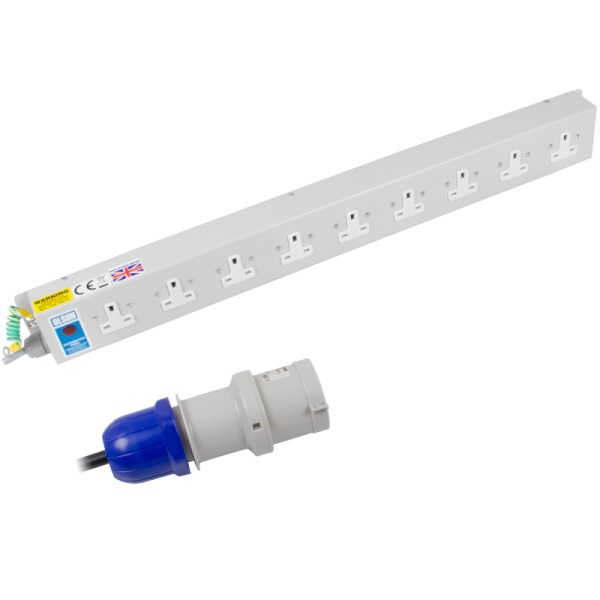

9 Way 13A Unswitched Socket Neon 32A Plug PDU
£155.23 Excl. VAT
Part No. N13A/09/3M/32A
- The Olson Slim Range is ideal for wall or floor mounting and available in 10 different sizes as standard
- A robust mild steel construction
- Light grey RAL 7035 paint finish
- Internal 32A rating
- Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
- Red neon “mains on” indicator
- Brackets on each side for easy fixing/installation
- 3m of 3 core cable with a 32A IEC 60309 (IEC309 / BS4343 / Commando) plug
Compare
- Additional information
Additional information
| Previous Part No. | N13A/9/3M/32A – N13A/9/32 |
|---|---|
| Product Range | 13A Slim Range |
| Orientation | Horizontal |
| Socket Outlet Type | UK 13A |
| Number of Sockets | 9 |
| Neon | Yes |
| Switched | Unswitched |
| Fuse Holder | No |
| Fuse Link | Fuse Link -? BS 1363 |
| Individually Fused | No |
| Cable Length | 3M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 32A max. |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Socket Outlet Compliance | 13 Amp Sockets – BS 1363 |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 2.756 |
| Height (mm) | 78 |
| Width (mm) | 695 |
| Depth (mm) | 45 |
| Fixing Centres | 680 |
| Digital Power Meter | None |
