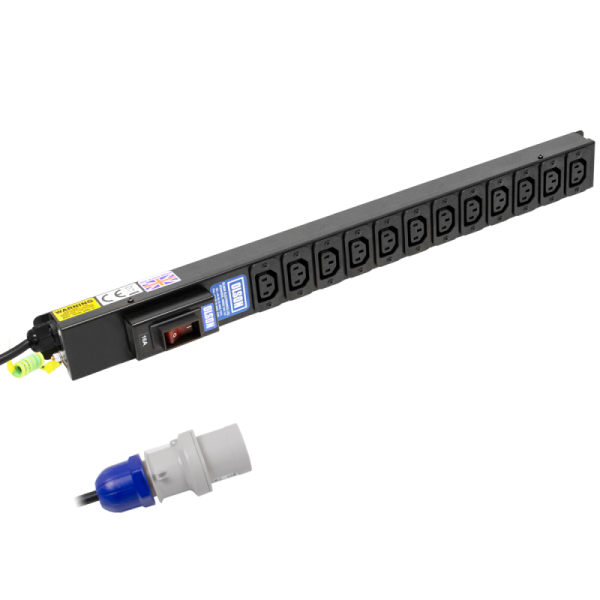

12 Way 10A IEC 60320 C13 Socket with 16A IEC 60309 Plug Circuit Breaker PDU
£133.76 Excl. VAT
Part No. 3235
• A robust mild steel construction
• Finished in black powder coating
• Brackets on each side for easy fixing/installation
• IEC 60320 C13 10A rated shuttered sockets
• 3m of 3 core cable with a 16A IEC 60309 (IEC309 / BS4343 / Commando) plug
• Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
• High-integrity dual earthing
• 15A red illuminated circuit breaker
Compare
- Additional information
Additional information
| Product Range | IEC 60320 C13 Sockets |
|---|---|
| Orientation | Vertical |
| Socket Outlet Type | C13 10A IEC 60320 |
| Number of Sockets | 12 |
| Neon | Yes |
| Switched | Main Switch |
| Fuse Holder | No |
| Individually Fused | No |
| Cable Length | 3M |
| Plug Inlet Type | |
| Colour | Black (RAL 9005) |
| Current Rating | 15A |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | IEC 60320 C13 10A (CEE22) |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 2.4 |
| Height (mm) | 608 |
| Width (mm) | 44 |
| Depth (mm) | 40 |
| Digital Power Meter | None |
