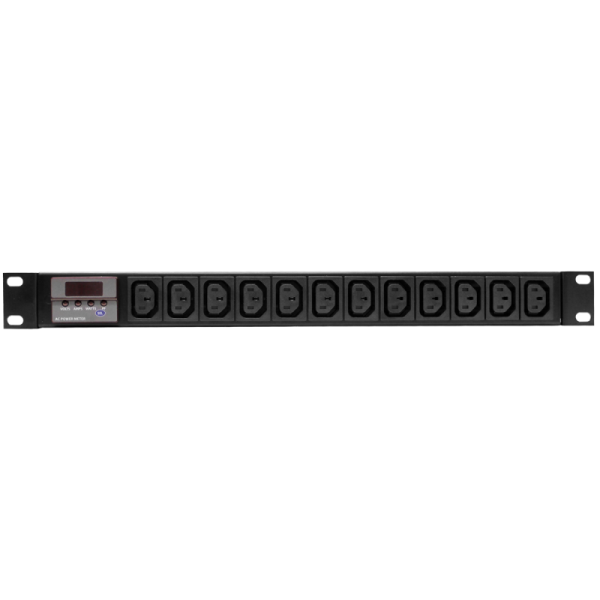

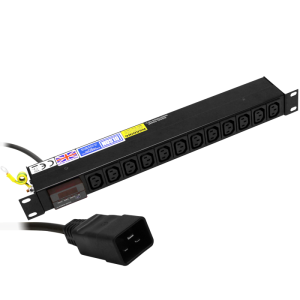

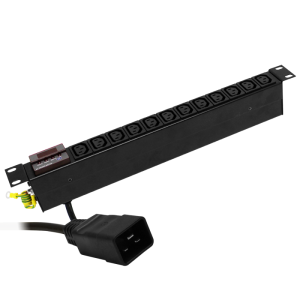

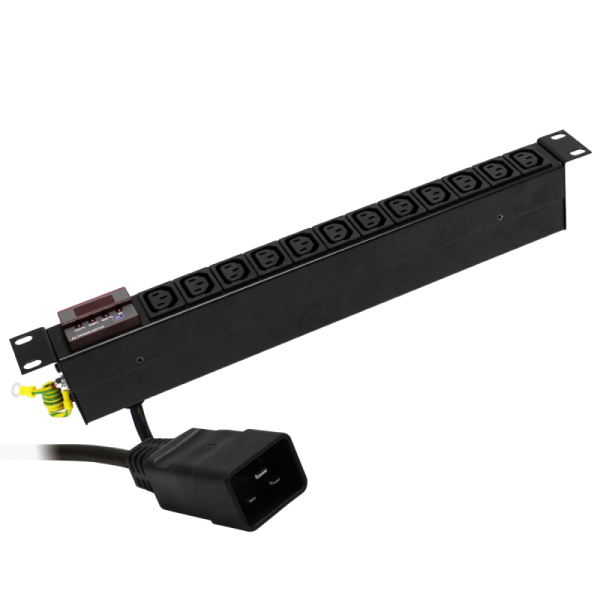

12 Way 19″ 1U Power Metered 10A IEC 60320 C13 Sockets C20 Plug Rack Mount PDU

12 Way 19″ 1U Power Metered 10A IEC 60320 C13 Sockets C20 Plug Rack Mount PDU

£157.33 Excl. VAT

In stock

£157.33 Excl. VAT

Part No. PM11/12/C20PLUG

• A robust mild steel construction with a black paint finish
• 19″ 1U (44.4mm) high, 70mm deep, 483mm wide
• 12x IEC 60320 C13 10A shuttered sockets
• 16A IEC 60320 plug with 3m of cable
• High-Integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
• A digital meter with easy to read 9.4mm high digits

The Deluxe Power Meter Features:
• Monitor Amps, volts, watts and P.F. (all True RMS)
• The ability to either automatically scroll through the four values or to select the parameter to be displayed
• 4x LEDs to easily identify what parameter is being measured
• Accuracy 1% amps, volts, 2% Watts, 3% P.F.

View cart
Compare

Additional information

Product Range

Meter Range

Orientation

Horizontal

Socket Outlet Type

C13 10A IEC 60320

Number of Sockets

12

Neon

No

Switched

Unswitched

Fuse Holder

No

Individually Fused

No

Cable Length

3M

Plug Inlet Type

Colour

Black (RAL 9005)

Current Rating

16A max

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Manufactured To

BS 5733

Socket Outlet Compliance

CSA, IEC 60320 C13 BEAB, UL, VDE

Cable Compliance

BS 6500

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

1.99

Height (mm)

44.4 (1U)

Width (mm)

482.6 (19")

Depth (mm)

70
