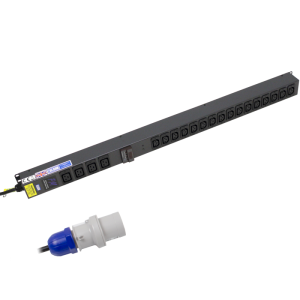

16x 10A IEC 60320 C13 & 4x 16A IEC 60320 C19 Socket Power Metered 16A Plug PDU - Image 1
16x 10A IEC 60320 C13 & 4x 16A IEC 60320 C19 Socket Power Metered 16A Plug PDU - Image 2
16x 10A IEC 60320 C13 & 4x 16A IEC 60320 C19 Socket Power Metered 16A Plug PDU - Image 3

16x 10A IEC 60320 C13 & 4x 16A IEC 60320 C19 Socket Power Metered 16A Plug PDU

16x 10A IEC 60320 C13 & 4x 16A IEC 60320 C19 Socket Power Metered 16A Plug PDU

£331.61 Excl. VAT

In stock

£331.61 Excl. VAT

Part No. PM/COM16-4/16

  • A robust mild steel construction
  • Black RAL 9005 paint finish
  • 16A rated unit
  • A combination of IEC 60320 C13 10A and C19 16A sockets
  • High-integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
  • 3m of 3 core cable and a 16A IEC309 / BS4343 (Commando style) plug
  • A digital meter with easy to read 9.4mm high digits

The Deluxe Power Meter Features:

  • Monitor Amps, volts, watts and P.F. (all True RMS)
  • The ability to either automatically scroll through the four values or to select the parameter to be displayed
  • 4x LEDs to easily identify what parameter is being measured
  • Accuracy 1% amps, volts, 2% Watts, 3% P.F.
    • Compare

    Additional information

    Previous Part No.

    PM/COM16+4/16
    Product Range

    Vertical Power Meter Combination PDU Range
    Orientation

    Vertical
    Socket Outlet Type

    C13 10A + C19 16A
    Number of Sockets

    16 + 4
    Neon

    No
    Switched

    Unswitched
    Fuse Holder

    No
    Individually Fused

    No
    Cable Length

    3M
    Plug Inlet Type

    Colour

    Black (RAL 9005)
    Current Rating

    16A max.
    Operating Voltage

    Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC
    Manufactured To

    BS 5733
    Socket Outlet Compliance

    10A Socket : IEC 60320 C13 – 16A Socket: IEC 60320 C19
    Cable Compliance

    BS 6500
    UKCA / CE Compliant

    Yes
    RoHs Compliant

    Yes
    Country of Manufacture

    United Kingdom
    Weight KGs

    3.4
    Height (mm)

    982
    Width (mm)

    60
    Depth (mm)

    50
    Fixing Centres

    966
    Digital Power Meter

    Digital Power Meter
