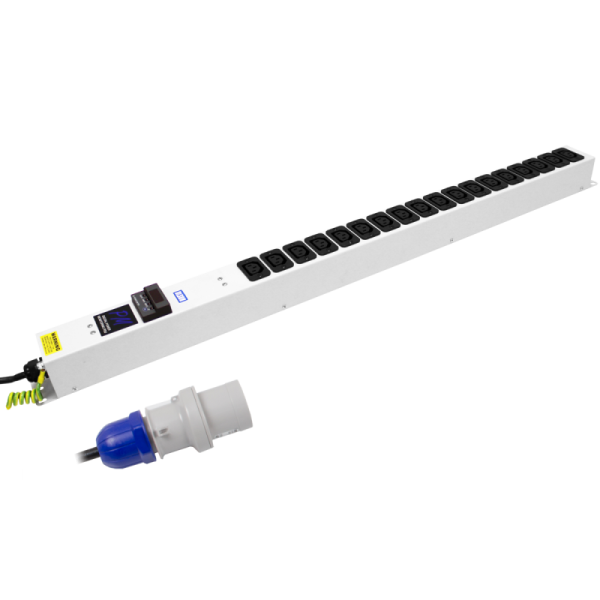

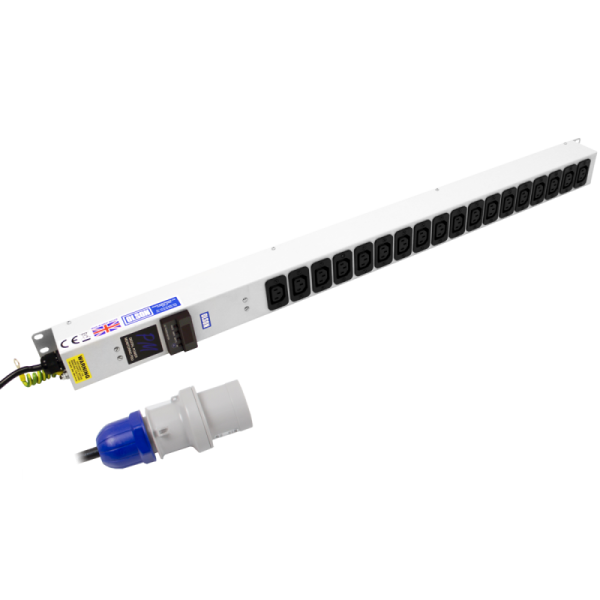

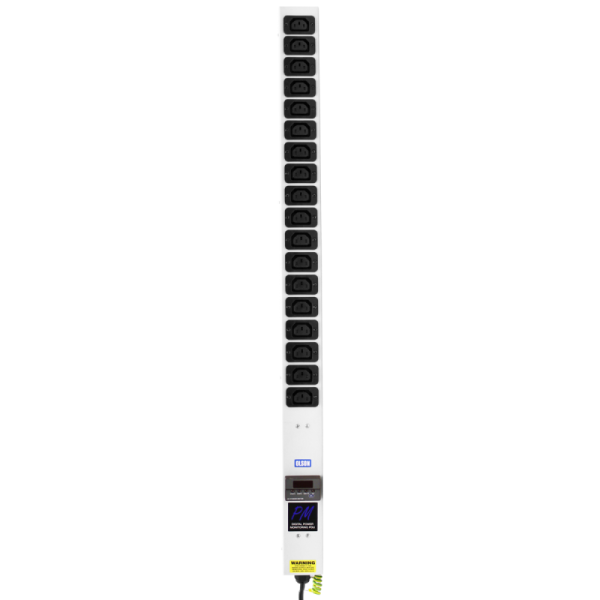

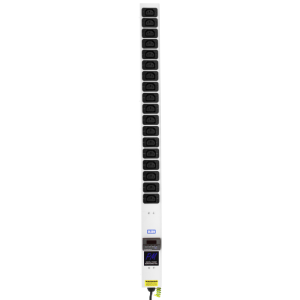

18 Way 10A IEC 60320 C13 Power Metered Sockets 16A Plug PDU

18 Way 10A IEC 60320 C13 Power Metered Sockets 16A Plug PDU

£192.45 Excl. VAT

In stock

£192.45 Excl. VAT

Part No. PM1084/16

• A robust mild steel construction with light grey RAL 7035 paint finish
• For vertical “0U” rack mounting
• Internal wiring 2.5mm² – 20A rating
• High-Integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
• 3m of 3 core cable with a 16A IEC 60309 (IEC309 / BS4343 / Commando) plug
• A digital meter with easy to read 9.4mm high digits

The Deluxe Power Meter Features:
• Monitor Amps, volts, watts and P.F. (all True RMS)
• The ability to either automatically scroll through the four values or to select the parameter to be displayed
• 4x LEDs to easily identify what parameter is being measured
• Accuracy 1% amps, volts, 2% Watts, 3% P.F.

View cart
Compare

Additional information

Previous Part No.

AM1084/16

Product Range

Meter Range

Orientation

Vertical

Socket Outlet Type

C13 10A IEC 60320

Number of Sockets

18

Neon

No

Switched

Unswitched

Fuse Holder

No

Individually Fused

No

Cable Length

3M

Plug Inlet Type

Colour

Light Grey (RAL 7035)

Current Rating

16A max.

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Manufactured To

BS 5733

Socket Outlet Compliance

IEC 60320 C13 10A (CEE22)

Cable Compliance

BS 6500

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

3.1

Height (mm)

927

Width (mm)

62

Depth (mm)

58

Digital Power Meter

Digital Power Meter
