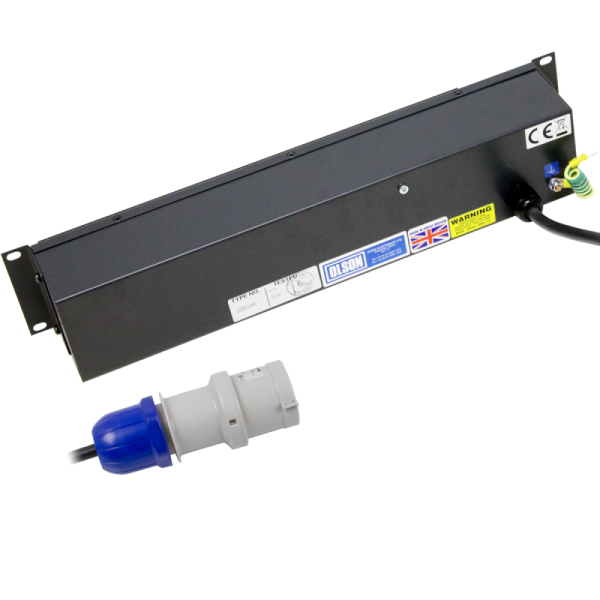

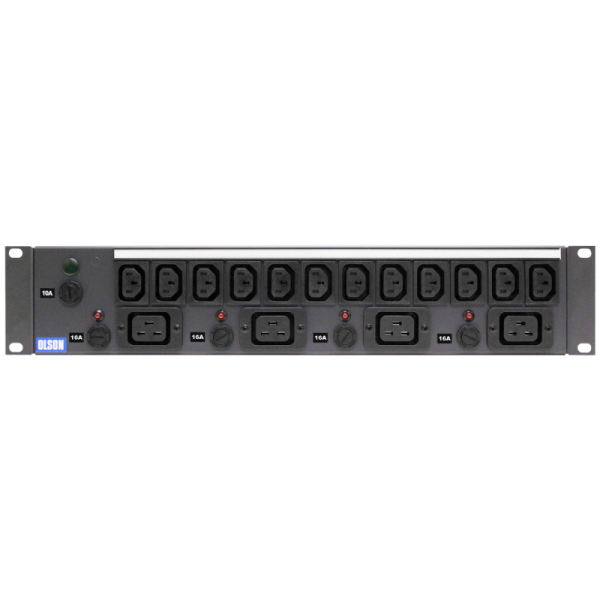

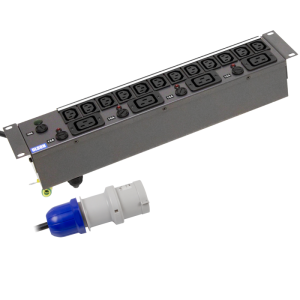

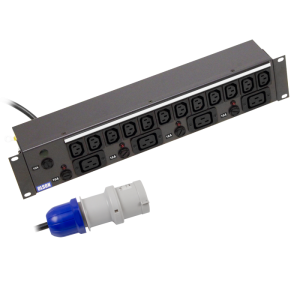

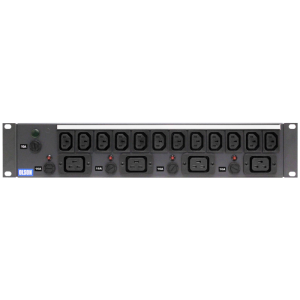

19″ 2U 12x 10A IEC 60320 C13 & 4x 16A IEC 60320 C19 Neon & Fused 32A Plug PDU

19″ 2U 12x 10A IEC 60320 C13 & 4x 16A IEC 60320 C19 Neon & Fused 32A Plug PDU

£267.39 Excl. VAT

In stock

£267.39 Excl. VAT

Part No. COM12-4/R/32

• A robust mild steel construction
• Anthracite RAL 7016 paint finish
• Internal wiring rated 32A
• High-integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
• 12x IEC 60320 C13 10A sockets with mains fuse and neon
• 4x IEC 60320 C19 16A sockets with individual fuse and neon
• 3m of 3 core cable terminated with a 32A IEC 60309 (IEC309 / BS4343 / Commando) Plug
• Identity strip for marking individual circuits

View cart
Compare

Additional information

Previous Part No.

COM12+4/R/32

Product Range

Combination PDU Range

Orientation

Horizontal

Socket Outlet Type

C13 10A + C19 16A

Number of Sockets

12 + 4

Neon

Yes

Switched

Unswitched

Fuse Holder

Yes

Fuse Rating

C13: 10A – C19: 16A

Individually Fused

No

Cable Length

3M

Plug Inlet Type

Colour

Anthracite (RAL 7016)

Current Rating

32A max.

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Manufactured To

BS 5733

Socket Outlet Compliance

10A Socket : IEC 60320 C13 – 16A Socket: IEC 60320 C19

Cable Compliance

BS 6500

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

3.15

Height (mm)

88.8 (2U)

Width (mm)

482.6 (19")

Depth (mm)

80 (120 inc gland)

Digital Power Meter

None
