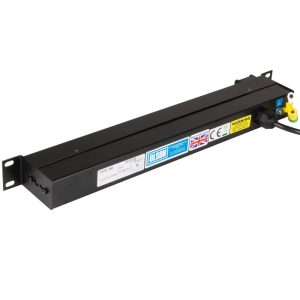

19 Inch 1U Horizontal 4x UK 13A & 4x C13 10A Rack Mount Illuminated Main Switch 13A Plug PDU
£63.23 Excl. VAT
Part No. 13A1U/4-4/MS/13
• Independently tested & British made
• 1U 19 Inch Rack 4 Way 13A UK + 4 Way C13 Outlet
• 13A plug with 2M Lead
• Illuminated On / Off switch with shroud
• Surge protected
• Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
• Robust Zintec steel construction
• Finished in tough powder coat black
• Compact depth of just 68mm
• Manufactured and designed in the UK
• Custom options available
- Additional information
Additional information
| Product Range | 1U |
|---|---|
| Orientation | Horizontal |
| Socket Outlet Type | UK 13A / C13 10A IEC 60320 |
| Number of Sockets | 4 + 4 |
| Neon | Illuminated Main Switch |
| Switched | Main Switch |
| Fuse Holder | No |
| Individually Fused | No |
| Cable Length | 2M |
| Plug Inlet Type | |
| Colour | Black (RAL 9005) |
| Current Rating | 13A max. |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | 13 Amp Sockets – BS 1363 / IEC 60320 C13 10A (CEE22) |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 1.545 |
| Height (mm) | 44 |
| Width (mm) | 482 |
| Depth (mm) | 68 |
| Fixing Centres | 467 |
| Digital Power Meter | None |
