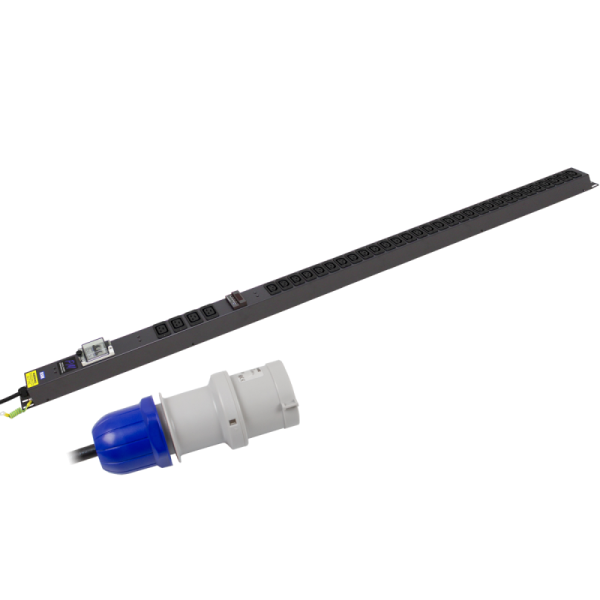

30x 10A IEC 60320 C13 & 4x 16A IEC 60320 C19 Socket Circuit Breaker Power Metered 32A Plug PDU - Image 1

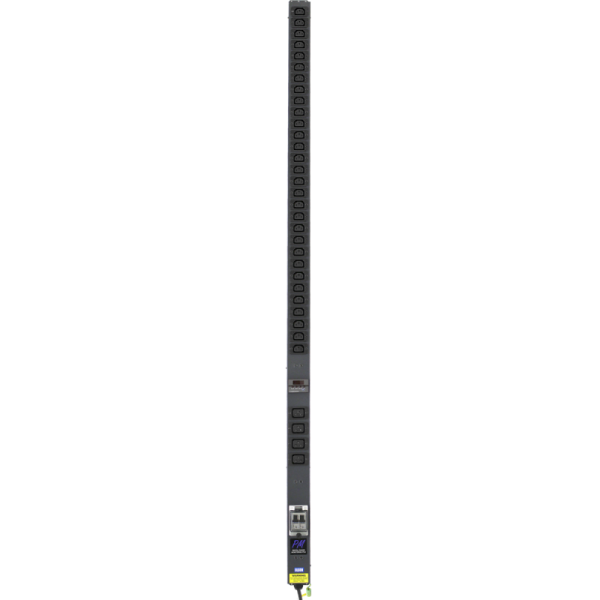

30x 10A IEC 60320 C13 & 4x 16A IEC 60320 C19 Socket Circuit Breaker Power Metered 32A Plug PDU - Image 2

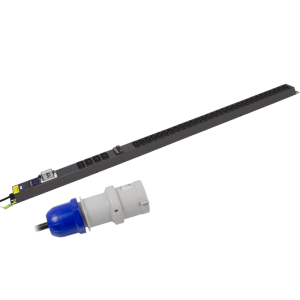

30x 10A IEC 60320 C13 & 4x 16A IEC 60320 C19 Socket Circuit Breaker Power Metered 32A Plug PDU - Image 3

30x 10A IEC 60320 C13 & 4x 16A IEC 60320 C19 Socket Circuit Breaker Power Metered 32A Plug PDU

30x 10A IEC 60320 C13 & 4x 16A IEC 60320 C19 Socket Circuit Breaker Power Metered 32A Plug PDU

£514.95 Excl. VAT

In stock

£514.95 Excl. VAT

Part No. CB/PM/COM30-4/32

  • A robust mild steel construction
  • Black RAL 9005 paint finish
  • 32A rated unit
  • 2x 16A single pole circuit breaker
  • A combination of IEC 60320 C13 10A and C19 16A sockets
  • High-integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
  • 3m of 3 core cable and a 32A IEC309 / BS4343 (Commando style) plug
  • A digital meter with easy to read 9.4mm high digits

The Deluxe Power Meter Features:

  • Monitor Amps, volts, watts and P.F. (all True RMS)
  • The ability to either automatically scroll through the four values or to select the parameter to be displayed
  • 4x LEDs to easily identify what parameter is being measured
  • Accuracy 1% amps, volts, 2% Watts, 3% P.F.
    • Compare

    Additional information

    Previous Part No.

    CB/PM/COM30+4/32
    Product Range

    Vertical Power Meter Combination PDU Range
    Orientation

    Vertical
    Socket Outlet Type

    C13 10A + C19 16A
    Number of Sockets

    30 + 4
    Neon

    No
    Switched

    Main Switch
    Fuse Holder

    No
    Individually Fused

    No
    Cable Length

    3M
    Plug Inlet Type

    Colour

    Black (RAL 9005)
    Current Rating

    32A max.
    Operating Voltage

    Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC
    Manufactured To

    BS 5733
    Socket Outlet Compliance

    10A Socket : IEC 60320 C13 – 16A Socket: IEC 60320 C19
    Cable Compliance

    BS 6500
    UKCA / CE Compliant

    Yes
    RoHs Compliant

    Yes
    Country of Manufacture

    United Kingdom
    Weight KGs

    6.1
    Height (mm)

    1652
    Width (mm)

    60
    Depth (mm)

    50
    Fixing Centres

    1636
