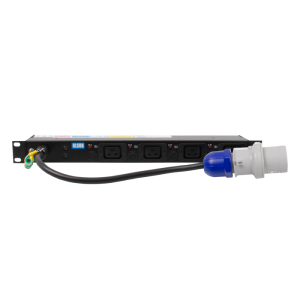

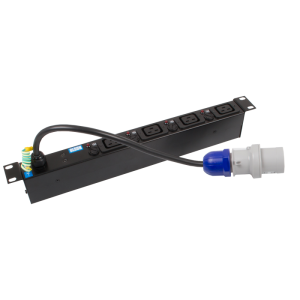

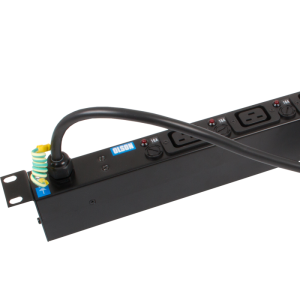

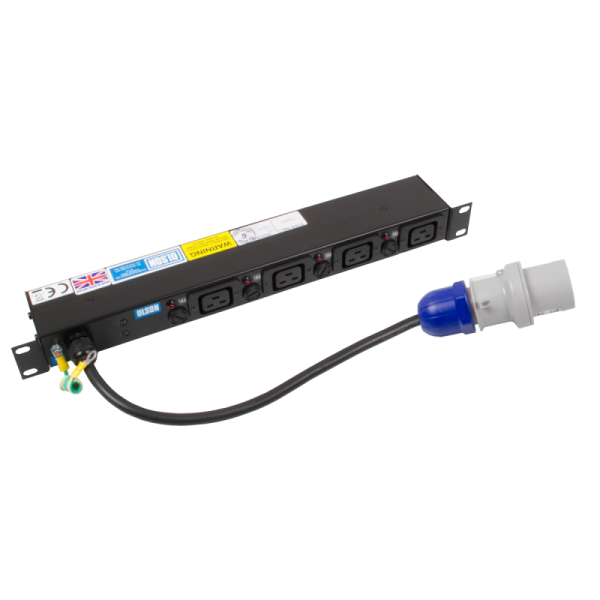

4 Way 19″ 1U 16A IEC C19 Sockets Individual Neon & Fused 16A Plug PDU
£223.00 Excl. VAT
Part No. C19/9004/10M/16A
• A robust mild steel construction
• Anthracite RAL 7016 paint finish
• 19″ 1U (44.4mm) high, 65mm deep (not including the cable/gland), 483mm wide
• IEC 60320 C19 16A sockets
• Internal wiring 32A rating
• High-integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
• Individual 16A 20mm fuses and neon indicators fitted as standard
• 10m of 3 core cable with a 16A IEC 60309 (IEC309 / BS4343 / Commando) plug
• Can be horizontally or vertically mounted by rotating the bracket
- Additional information
Additional information
| Product Range | 19" Rack Range – C19 Sockets |
|---|---|
| Orientation | Horizontal |
| Socket Outlet Type | C19 16A IEC 60320 |
| Number of Sockets | 4 |
| Neon | Yes |
| Switched | Unswitched |
| Fuse Holder | Yes |
| Fuse Rating | 16A |
| Individually Fused | Yes |
| Cable Length | 10M |
| Plug Inlet Type | |
| Colour | Anthracite (RAL 7016) |
| Current Rating | 16A |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Socket Outlet Compliance | CSA, IEC 60320 C19 BEAB, UL, VDE |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 3.52 |
| Height (mm) | 44.4 (1U) |
| Width (mm) | 482.6 (19") |
| Depth (mm) | 65 |
| Digital Power Meter | None |
