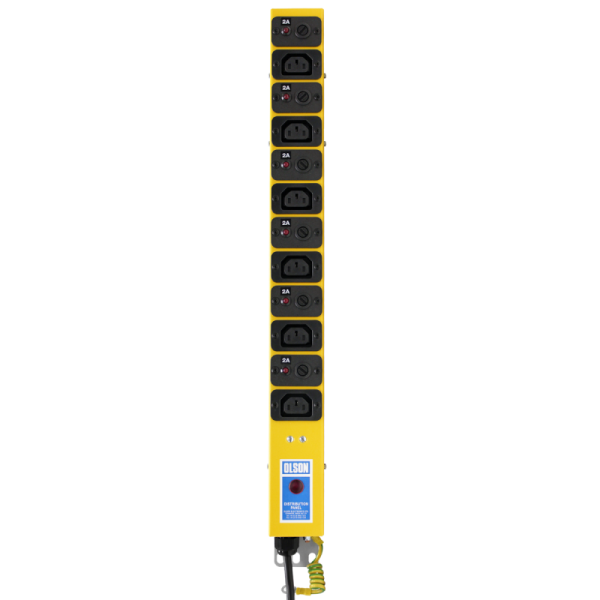

6 Way 10A Individual Neon Fused IEC C13 Sockets CEE 7/7 Plug PDU

6 Way 10A Individual Neon Fused IEC C13 Sockets CEE 7/7 Plug PDU

£116.89 Excl. VAT

In stock

£116.89 Excl. VAT

Part No. NF6A/06/GER

• A robust mild steel construction
• Elegant two tone paint finish with the panel in yellow and a grey case
• IEC 60320 C13 10A shuttered sockets
• All sockets are individually fused with individual LED indicators
• 2A fuses fitted as standard
• Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
• Red LED “mains on” indicator
• Brackets on each side for easy fixing and installation
• High integrity dual earthing

View cart
Compare

Additional information

Previous Part No.

NF6A/6/GER

Product Range

IEC 60320 C13 Shuttered Sockets

Orientation

Vertical

Socket Outlet Type

C13 10A IEC 60320

Number of Sockets

6

Neon

Yes

Switched

Unswitched

Fuse Holder

CSA, IEC257, SEMKO, UL, VDE

Fuse Rating

2A

Individually Fused

Yes

Cable Length

2M

Plug Inlet Type

Colour

Light Grey Case (RAL 7035), Yellow Panel (RAL 1012)

Current Rating

10A max.

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Manufactured To

BS 5733

Socket Outlet Compliance

CSA, IEC 60320 C13 10A Shuttered (BEAB, UL, VDE)

Cable Compliance

BS 6500

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

1.55

Height (mm)

540

Width (mm)

50

Depth (mm)

40

Digital Power Meter

None
