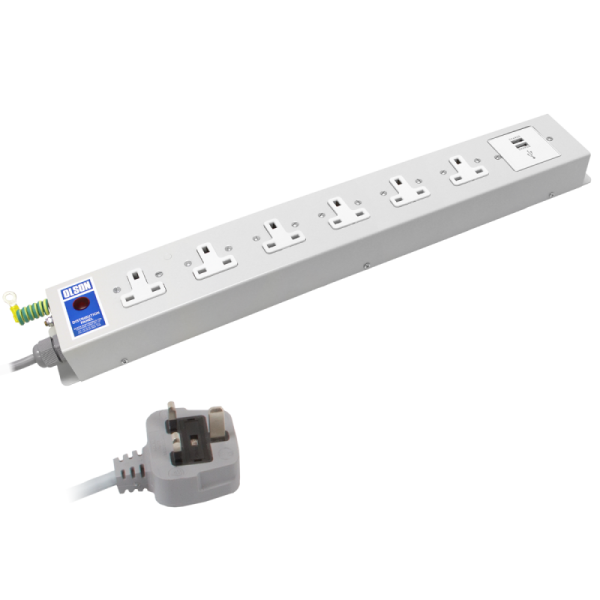

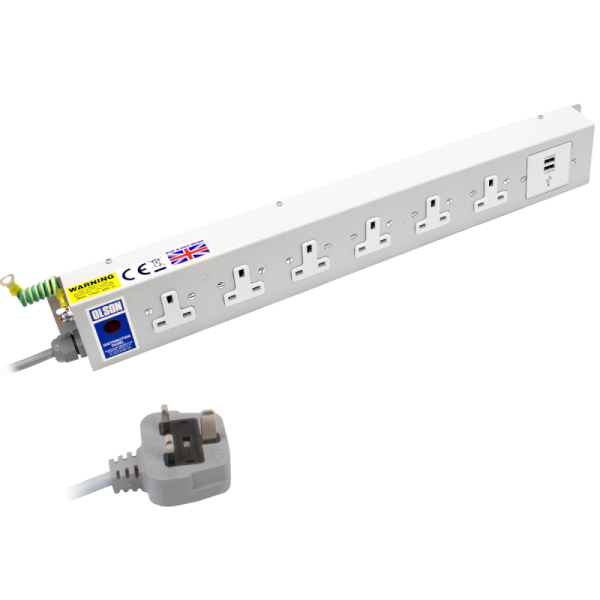

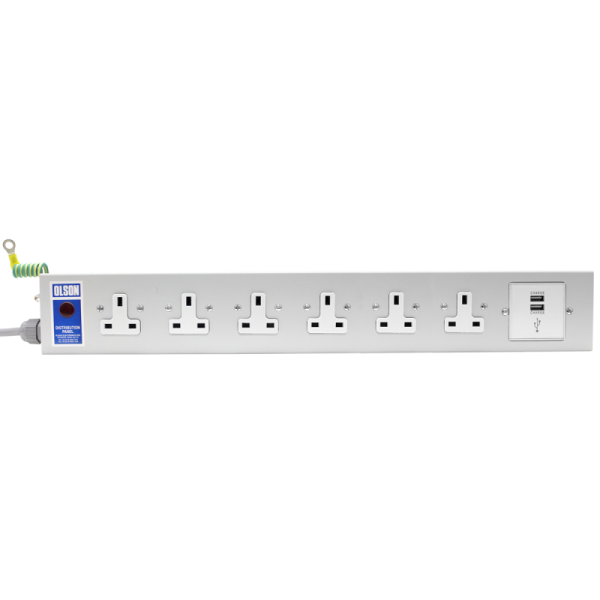

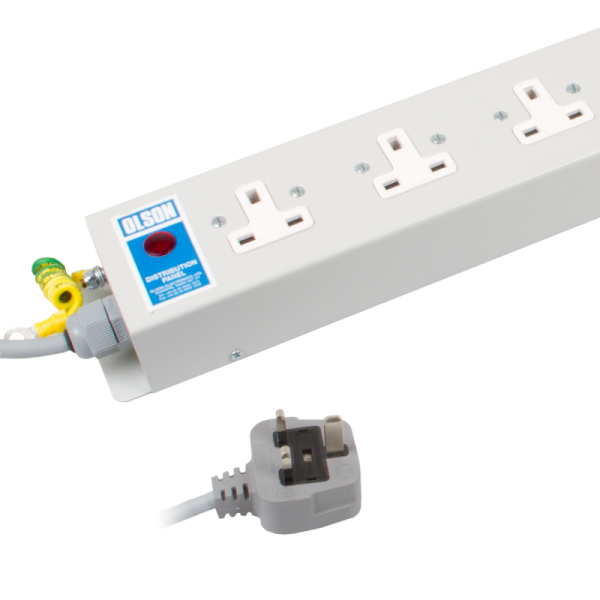

6 Way 13A Unswitched Socket + 2 USB Charger Neon 13A Plug PDU

6 Way 13A Unswitched Socket + 2 USB Charger Neon 13A Plug PDU

£103.34 Excl. VAT

In stock

£103.34 Excl. VAT

Part No. N13A/06/1USB

• The Olson USB Slim Range is ideal for wall or floor mounting and available in 10 different sizes as standard
• A robust mild steel construction
• Light grey RAL 7035 paint finish
• Internal wiring 2.5mm² – 20A rating
• Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
• Red neon “mains on” indicator
• Brackets on each side for easy fixing/installation
• 2m cable – PVC (1.5mm² 3 core) terminated with a 13A fused plug
• USB Sockets are 5V with total load 2A combined (if one device is plugged in, that device will receive the total load, if two devices are plugged in the load is split between them)

View cart
Compare

Additional information

Previous Part No.

N13A/6/1USB

Product Range

13A Slim Range / USB Range

Orientation

Horizontal

Socket Outlet Type

UK 13A

Number of Sockets

6

Neon

Yes

Switched

Unswitched

Fuse Holder

No

Individually Fused

No

Cable Length

2M

Plug Inlet Type

Colour

Light Grey (RAL 7035)

Current Rating

13A max.

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Socket Outlet Compliance

13 Amp Sockets – BS 1363

Cable Compliance

BS 6500

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

1.764

Height (mm)

78

Width (mm)

552

Depth (mm)

45

Fixing Centres

537

Digital Power Meter

None
