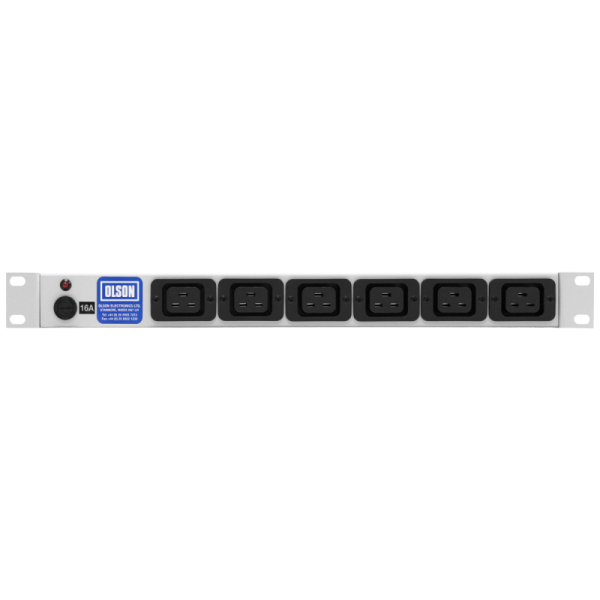

6 Way 19″ 1U 16A IEC 60320 C19 Neon & Fused C20 Plug PDU
£114.36 Excl. VAT
Part No. C19/9106/CABLE/C20
- Strong steel cased finished in light grey RAL 7035

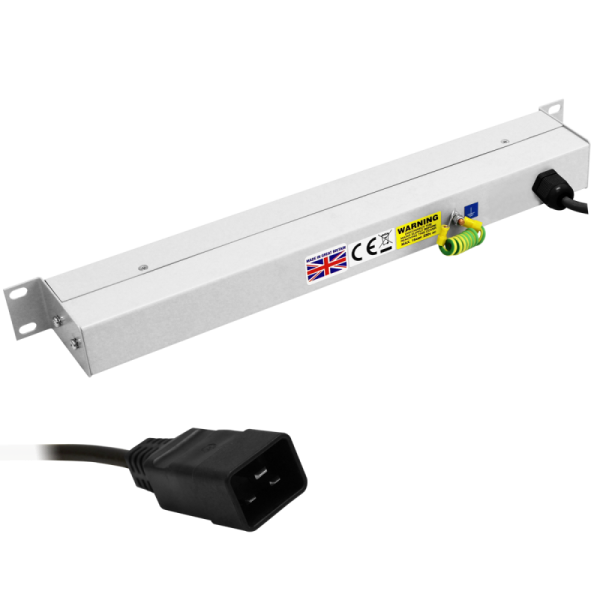

- 2m 3 core cable with a 16A IEC C20 plug
- Current rating 16A max
- High-Integrity dual earth bonding for maximum safety
- External M5 earth stud, with earth wire 250mm long
- Red ‘mains on’ neon indicator
- 19″ x 1U (483mm x 44mm) x 70mm deep
Compare
- Additional information
Additional information
| Product Range | 19" Rack Range |
|---|---|
| Orientation | Horizontal |
| Socket Outlet Type | C19 16A IEC 60320 |
| Number of Sockets | 6 |
| Neon | Yes |
| Switched | Unswitched |
| Fuse Holder | Yes |
| Fuse Rating | 16A |
| Individually Fused | No |
| Cable Length | 2M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 16A max |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | IEC 60320 C19 16A (CEE22) |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 1.7 |
| Height (mm) | 44.4 (1U) |
| Width (mm) | 482.6 (19") |
| Depth (mm) | 70 |
| Digital Power Meter | None |
