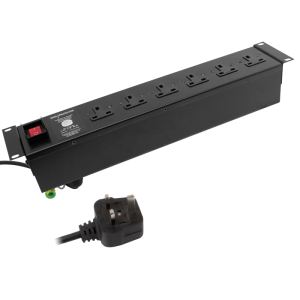

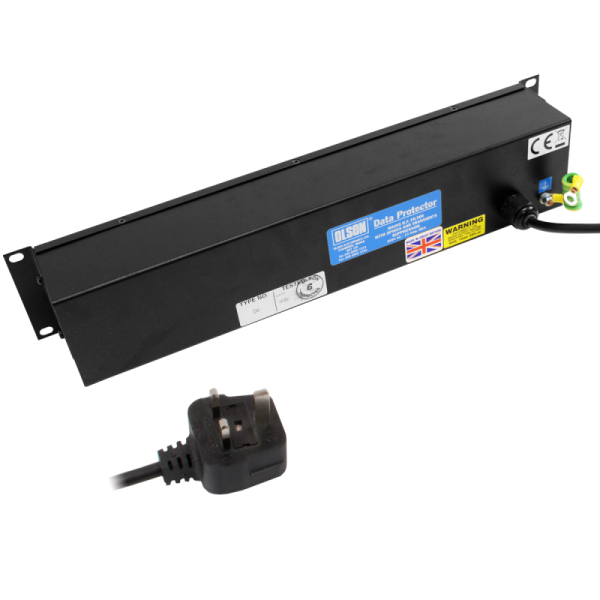

6 Way 19″ 2U Horizontal 13A RF Filtered Surge Protected Illuminated Main Switch Rack Mount PDU

6 Way 19″ 2U Horizontal 13A RF Filtered Surge Protected Illuminated Main Switch Rack Mount PDU

£185.11 Excl. VAT

In stock

£185.11 Excl. VAT

Part No. 3245

  • 2U front panel
  • Steel construction finished in RAL 7016
  • 2m of 3 core 1.5mm² cable with 13A plug
  • High-integrity dual earthing
  • External M5 earth stud, complete with earth wire 250mm long
  • Illuminated On-Off mains switch

Surge Filter:

  • The surge filter is provided with a neon light to indicate operation. If the neon is not glowing, the surge filter is no longer operational and must be replaced to maintain over voltage protection
  • All modes L-N, L-E, N-E
  • Maximum operating voltage – 275V rms ac
  • Transient energy absorption – 3 x 140J
  • Transient peak current – (8/20uS) – 6500A
  • Impulse response time – <50nS
  • Varistor voltage @ 1mA dc test current – 430V
  • Maximum clamping voltage @ 100A (8/20uS) – 710V

    • RF Filter:

  • 250V AC – 20A
    • Compare

    Additional information

    Product Range

    19" Rack Range – 13A Sockets
    Orientation

    Horizontal
    Socket Outlet Type

    UK 13A
    Number of Sockets

    6
    Neon

    Yes
    Switched

    Main Switch
    Fuse Holder

    No
    Individually Fused

    No
    Cable Length

    2M
    Plug Inlet Type

    Colour

    Black (RAL 9005)
    Current Rating

    13A max
    Operating Voltage

    Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC
    Manufactured To

    BS 5733
    Socket Outlet Compliance

    13 Amp Sockets – BS 1363
    Cable Compliance

    BS 6500
    UKCA / CE Compliant

    Yes
    RoHs Compliant

    Yes
    Country of Manufacture

    United Kingdom
    Weight KGs

    2.18
    Height (mm)

    88.8 (2U)
    Width (mm)

    482.6 (19")
    Depth (mm)

    80
    Digital Power Meter

    None
