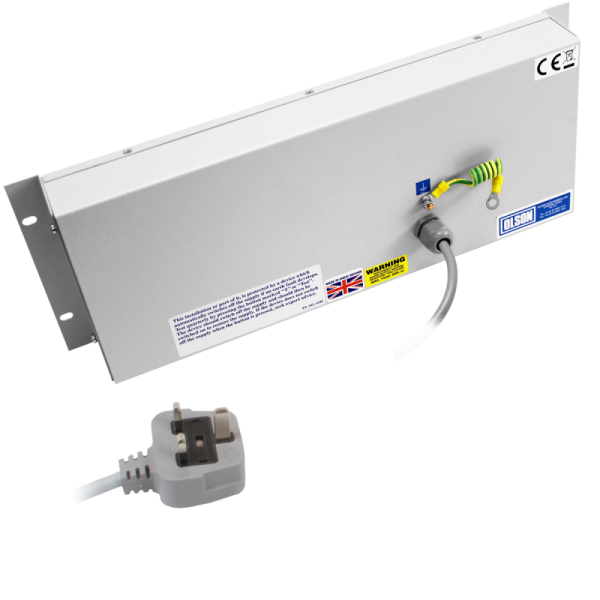

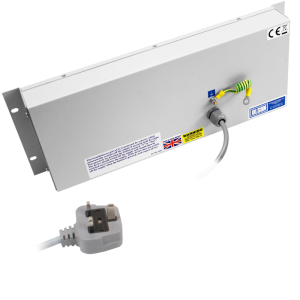

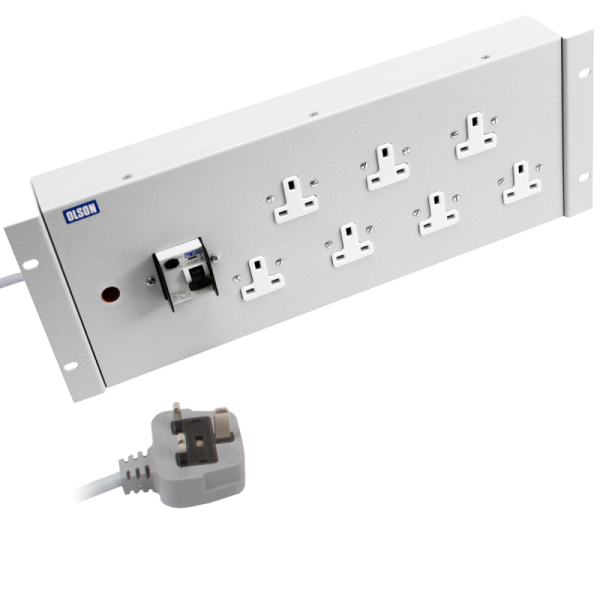

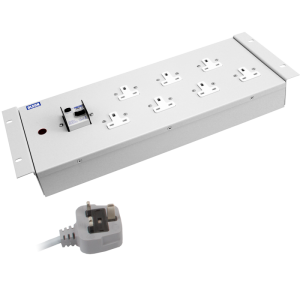

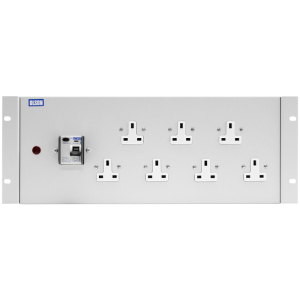

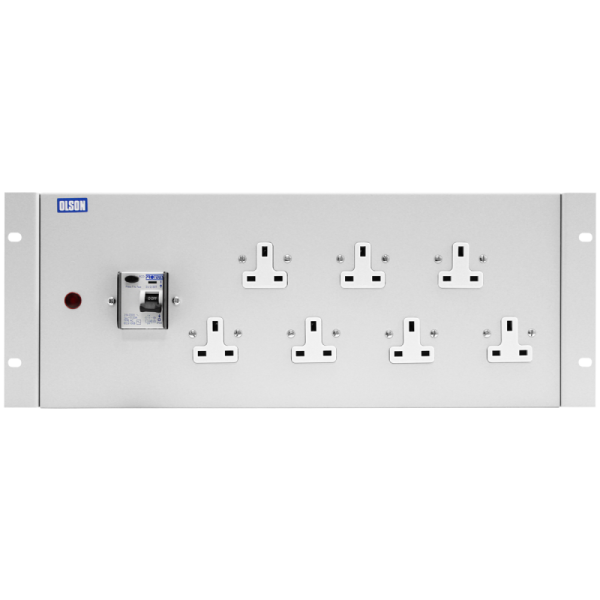

7 Way 19″ 4U 13A RCD Protected Rack Mount PDU
£208.49 Excl. VAT
Part No. REL7
- A robust mild steel construction with light grey RAL 7035 paint finish
- Internal wiring 2.5mm² – 20A rating
- Earth bonded with external M5 earth stud with 250mm long earth lead for maximum safety
- Red neon “mains on” indicator and incoming 25A 30mA RCD (RCD brands may vary)
- 2m 1.5mm² 3 core PVC cable terminated with a 13A fused plug
Compare
- Additional information
Additional information
| Product Range | 19" Rack Range |
|---|---|
| Orientation | Horizontal |
| Socket Outlet Type | UK 13A |
| Number of Sockets | 7 |
| Neon | Yes |
| Switched | Main Switch |
| Individually Fused | No |
| Cable Length | 2M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 13A max |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | 13 Amp Sockets – BS 1363 |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 2.95 |
| Height (mm) | 177.6 (4U) |
| Width (mm) | 482.6 (19") |
| Depth (mm) | 52 |
| Digital Power Meter | None |
