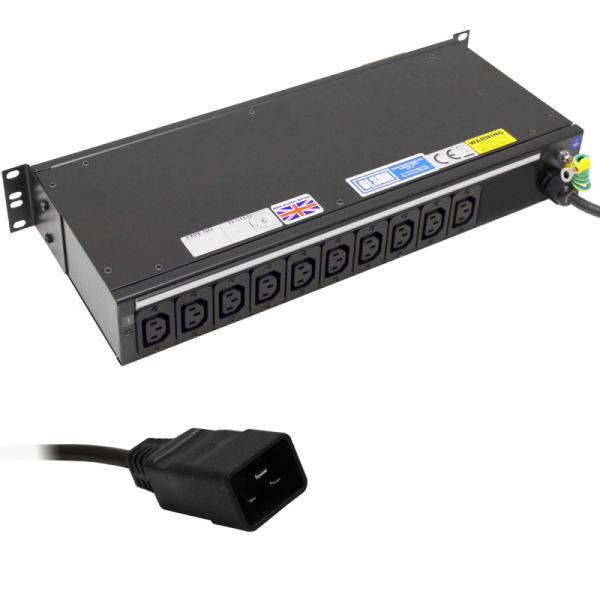

10 Way 19″ 1.5U Power Metered 16A C13 Manual Switching Rack Mount Rear Facing Socket PDU

10 Way 19″ 1.5U Power Metered 16A C13 Manual Switching Rack Mount Rear Facing Socket PDU

£311.32 Excl. VAT

In stock

£311.32 Excl. VAT

Part No. PM3262/3M/C20

  • A robust mild steel construction with Black RAL 9005 paint finish
  • 19″ 1.5U (66.6mm) high, 78mm deep (not including the cable/gland or earth tag)

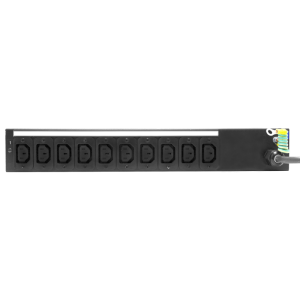

  • Individually switched rear mounted IEC 60320 C13 10A sockets

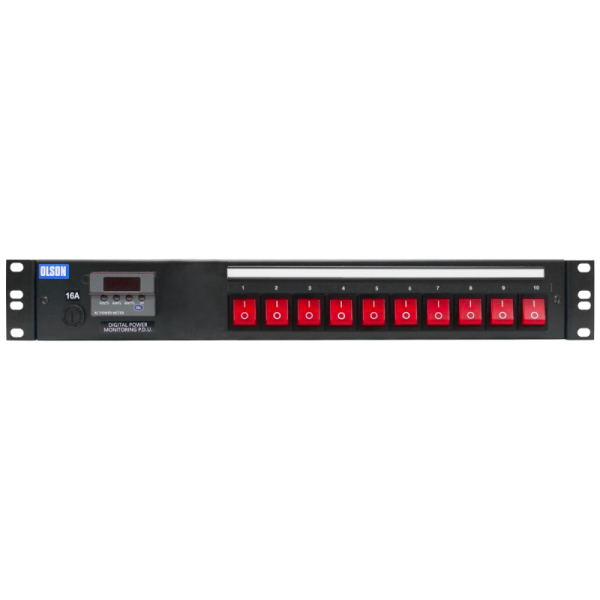

  • Front mounted illuminated double pole switches
  • 16A mains fuse
  • Identity strip for marking individual circuits
  • Internal wiring 20A rating
  • High-Integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
  • 3m of cable with a 16A IEC 60320 C20 Plug
  • A digital meter with easy to read 9.4mm high digits

The Deluxe Power Meter Features:

  • Monitor Amps, volts, watts and P.F. (all True RMS)
  • The ability to either automatically scroll through the four values or to select the parameter to be displayed
  • 4x LEDs to easily identify what parameter is being measured
  • Accuracy 1% amps, volts, 2% Watts, 3% P.F.
    • Compare

    Additional information

    Previous Part No.

    AM3262/3M/C20
    Product Range

    Switching Range
    Orientation

    Horizontal
    Socket Outlet Type

    C13 10A IEC 60320
    Number of Sockets

    10
    Neon

    Yes
    Switched

    Individually Switched
    Fuse Holder

    Yes
    Fuse Rating

    16A
    Individually Fused

    No
    Cable Length

    3M
    Plug Inlet Type

    Colour

    Black (RAL 9005)
    Current Rating

    16A
    Operating Voltage

    Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC
    Manufactured To

    BS 5733
    Socket Outlet Compliance

    IEC 60320 C13 10A (CEE22)
    Cable Compliance

    BS 6500
    UKCA / CE Compliant

    Yes
    RoHs Compliant

    Yes
    Country of Manufacture

    United Kingdom
    Weight KGs

    3.66
    Height (mm)

    66.6 (1.5U)
    Width (mm)

    482.6 (19")
    Depth (mm)

    180
    Digital Power Meter

    Digital Power Meter
