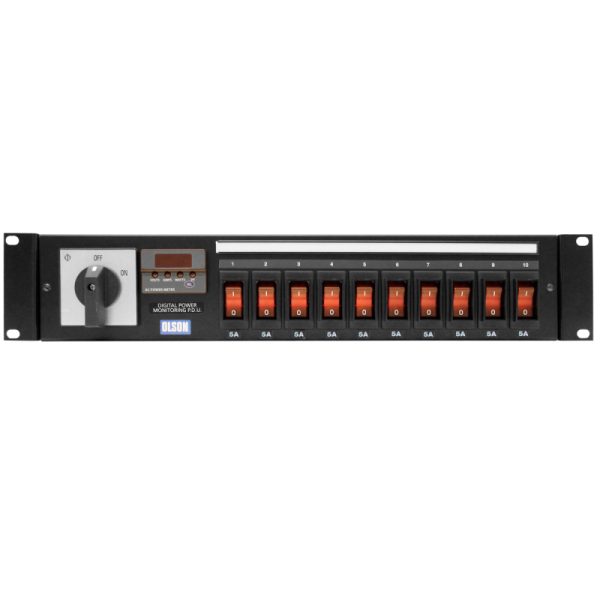

10 Way 19″ 2U Power Metered 10A IEC 60320 C13 Main Switch Individual Circuit Breaker Rack Mount PDU

10 Way 19″ 2U Power Metered 10A IEC 60320 C13 Main Switch Individual Circuit Breaker Rack Mount PDU

£465.95 Excl. VAT

In stock

£465.95 Excl. VAT

Part No. PM3356/16

• A robust mild steel construction with a black paint finish
• 19″ 2U (88.8mm) high, 180mm deep
• Mains On/Off switch (32A rated)
• 10 IEC 60320 C13 10A sockets with individual circuit breakers
• Front mounted individual illuminated circuit breakers rated 5A standard
• All Circuit Breakers are 5A, 2P switching, 2 pole sensing
• Identity strip for marking individual circuits
• High-Integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
• 3m of 3 core cable and a 16A IEC309 (BS4343) plug
• A digital meter with easy to read 9.4mm high digits

The Deluxe Power Meter Features:
• Monitor Amps, volts, watts and P.F. (all True RMS)
• The ability to either automatically scroll through the four values or to select the parameter to be displayed
• 4x LEDs to easily identify what parameter is being measured
• Accuracy 1% amps, volts, 2% Watts, 3% P.F.

View cart
Compare

Additional information

Product Range

Switching Range / Meter Range

Orientation

Horizontal

Socket Outlet Type

C13 10A IEC 60320

Number of Sockets

10

Neon

Yes

Switched

Individually Switched

Fuse Holder

No

Individually Fused

No

Cable Length

3M

Plug Inlet Type

Colour

Black (RAL 9005)

Current Rating

16A max.

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Manufactured To

BS 5733

Socket Outlet Compliance

CSA, IEC 60320 C13 BEAB, UL, VDE

Cable Compliance

BS 6500

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

4

Height (mm)

88.8 (2U)

Width (mm)

482.6 (19")

Depth (mm)

180

Digital Power Meter

Digital Power Meter
