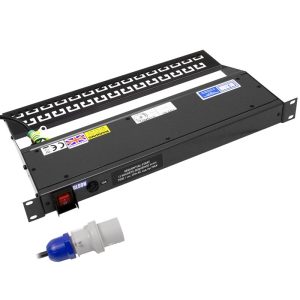

12 Way 19″ 1U Horizontal Rack Mount IEC 60320 C13 Sockets Main Switch Fused Sequential Start Cable Management PDU

12 Way 19″ 1U Horizontal Rack Mount IEC 60320 C13 Sockets Main Switch Fused Sequential Start Cable Management PDU

£209.86 Excl. VAT

In stock

£209.86 Excl. VAT

Part No. 3251/16

• 16A input connector with 3m of cable
• A robust mild steel construction with Anthracite RAL 7016 paint finish
• Illuminated 2 pole on-off switch rated 16A with shroud protection
• Overall depth 255mm
• Current 10A max
• High-Integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
• Maximum output current per 4 sockets 10A
• Three groups of four IEC 60320 sockets are switched on at 1 second intervals minimising high-inrush currents

View cart
Compare

Additional information

Product Range

Sequential Start

Orientation

Horizontal

Socket Outlet Type

C13 10A IEC 60320

Number of Sockets

12

Neon

Yes

Switched

Main Switch

Fuse Holder

Yes

Fuse Rating

16A

Individually Fused

No

Cable Length

3M

Plug Inlet Type

Colour

Anthracite (RAL 7016)

Current Rating

16A max

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Manufactured To

BS 5733

Socket Outlet Compliance

IEC 60320 C13 10A (CEE22)

Cable Compliance

BS 6500

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

3.12

Height (mm)

44.4 (1U)

Width (mm)

482.6 (19")

Depth (mm)

255

Digital Power Meter

None
