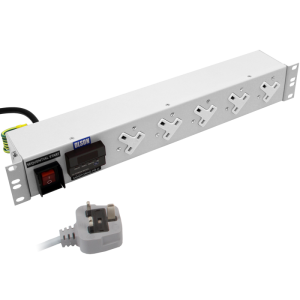

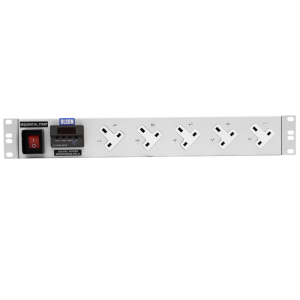

5 Way 19″ 1.5U 13A Power Metered Illuminated Main Switch Sequential Start 13A Plug PDU

5 Way 19″ 1.5U 13A Power Metered Illuminated Main Switch Sequential Start 13A Plug PDU

£206.53 Excl. VAT

In stock

£206.53 Excl. VAT

Part No. PM1030/13

• Sequential start technology to reduce start-up surges with a choice of digital meters in a standard 19″ 1.5U high enclosure
• Sequential start – the first socket powers immediately with the remainder powering at 1 second intervals
• A robust mild steel construction with light grey (RAL 7035) finish
• 19″ 1.5U (66.6mm) high
• 13A unswitched sockets
• Internal wiring 2.5mm² – 20A rating
• High-Integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
• Illuminated mains double pole switch
13A fused plug with 2 metres of cable

• A digital meter with easy to read 9.4mm high digits

The Deluxe Power Meter Features:
Monitor Amps, volts, watts and P.F. (all True RMS)
• The ability to either automatically scroll through the four values or to select the parameter to be displayed
• 4x LEDs to easily identify what parameter is being measured
• Accuracy 1% amps, volts, 2% Watts, 3% P.F.

View cart
Compare

Additional information

Previous Part No.

AM1030/13

Product Range

Meter Range

Orientation

Horizontal

Socket Outlet Type

UK 13A

Number of Sockets

5

Neon

Yes

Switched

Main Switch

Fuse Holder

No

Individually Fused

No

Cable Length

2M

Plug Inlet Type

Colour

Light Grey (RAL 7035)

Current Rating

13A max

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Manufactured To

BS 5733

Socket Outlet Compliance

13 Amp Sockets – BS 1363

Cable Compliance

BS 6500

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

2.65

Height (mm)

66.6 (1.5U)

Width (mm)

482.6 (19")

Depth (mm)

73 (100 inc gland)
