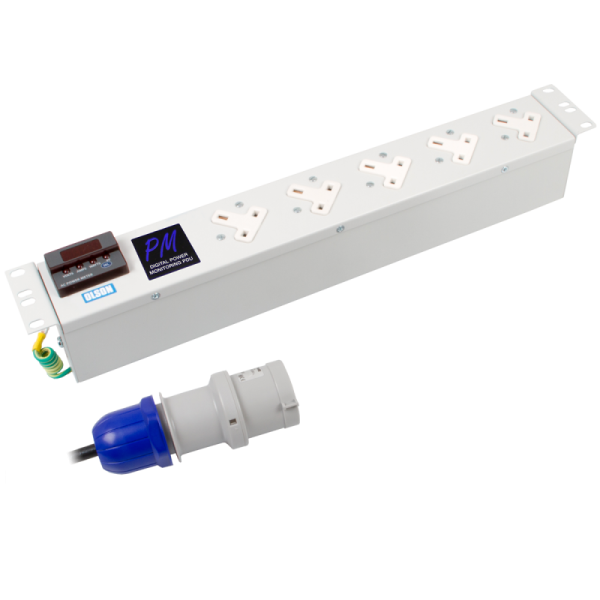

5 Way 19" 1.5U 13A Unswitched Power Metered 32A Plug PDU - Image 1

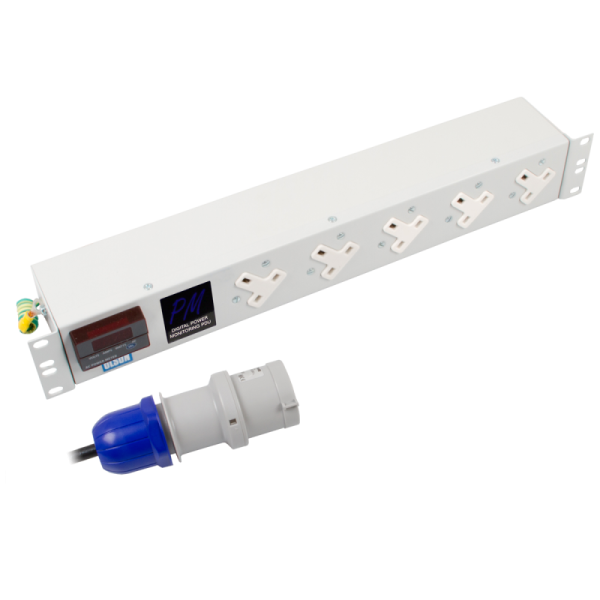

5 Way 19" 1.5U 13A Unswitched Power Metered 32A Plug PDU - Image 2

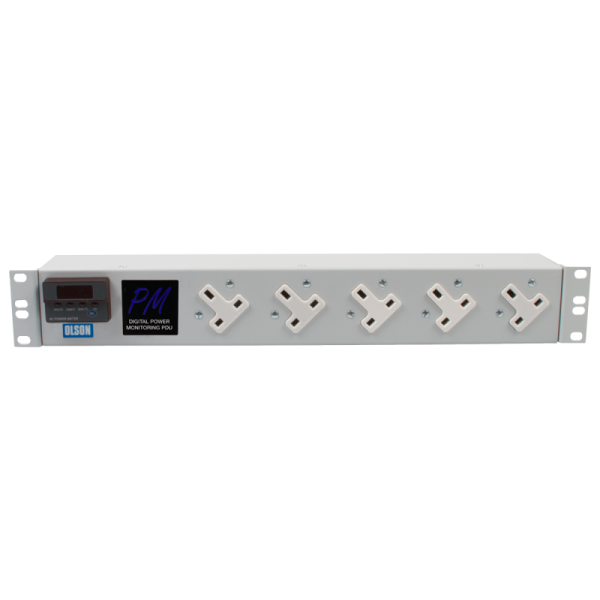

5 Way 19" 1.5U 13A Unswitched Power Metered 32A Plug PDU - Image 3

5 Way 19″ 1.5U 13A Unswitched Power Metered 32A Plug PDU

5 Way 19″ 1.5U 13A Unswitched Power Metered 32A Plug PDU

£175.67 Excl. VAT

In stock

£175.67 Excl. VAT

Part No. PM1026/32

  • A robust mild steel construction
  • Light grey RAL 7035 paint finish
  • 19″ horizontal rack mounting 1.5U (66.6mm) high
  • High-integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
  • A digital meter with easy to read 9.4mm high digits

The Deluxe Power Meter Features:

  • Monitor Amps, volts, watts and P.F. (all True RMS)
  • The ability to either automatically scroll through the four values or to select the parameter to be displayed
  • 4x LEDs to easily identify what parameter is being measured
  • Accuracy 1% amps, volts, 2% Watts, 3% P.F.
    • Compare

    Additional information

    Previous Part No.

    AM1026/32
    Product Range

    Meter Range
    Orientation

    Horizontal
    Socket Outlet Type

    UK 13A
    Number of Sockets

    5
    Neon

    No
    Switched

    Unswitched
    Fuse Holder

    No
    Fuse Link

    No
    Individually Fused

    No
    Cable Length

    3M
    Plug Inlet Type

    Colour

    Light Grey (RAL 7035)
    Current Rating

    13A
    Operating Voltage

    Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC
    Socket Outlet Compliance

    13 Amp Sockets – BS 1363
    UKCA / CE Compliant

    Yes
    Country of Manufacture

    United Kingdom
    Weight KGs

    2.56
    Height (mm)

    66.6 (1.5U)
    Width (mm)

    482.6 (19")
    Depth (mm)

    73 (100 inc gland)
    Digital Power Meter

    Digital Power Meter
