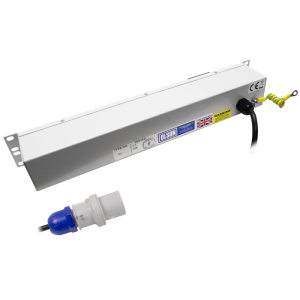

6 Way 1.5U 19″ Power Metered 16A IEC 60320 C19 Main Switch Fused PDU

6 Way 1.5U 19″ Power Metered 16A IEC 60320 C19 Main Switch Fused PDU

£172.89 Excl. VAT

In stock

£172.89 Excl. VAT

Part No. PM1046/16

  • Mains double pole neon indicated switch
  • IEC 60320 C19 16A sockets
  • A robust mild steel construction
  • 19″ wide 1.5U panel
  • 30A digital power meter
  • A digital meter with easy to read 9.4mm high digits

The Deluxe Power Meter Features:

  • Monitor Amps, volts, watts and P.F. (all True RMS)
  • The ability to either automatically scroll through the four values or to select the parameter to be displayed
  • 4x LEDs to easily identify what parameter is being measured
  • Accuracy 1% amps, volts, 2% Watts, 3% P.F.
    • Compare

    Additional information

    Previous Part No.

    AM1046/16
    Product Range

    PM Meter Range
    Orientation

    Horizontal
    Socket Outlet Type

    C19 16A IEC 60320
    Number of Sockets

    6
    Neon

    Yes
    Switched

    Main Switch
    Fuse Holder

    Yes
    Fuse Rating

    16A
    Individually Fused

    No
    Cable Length

    3M
    Plug Inlet Type

    Colour

    Light Grey (RAL 7035)
    Current Rating

    16A
    Operating Voltage

    Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC
    Manufactured To

    BS 5733
    Socket Outlet Compliance

    CSA, IEC 60320 C19 BEAB, UL, VDE
    Cable Compliance

    BS 6500
    UKCA / CE Compliant

    Yes
    RoHs Compliant

    Yes
    Country of Manufacture

    United Kingdom
    Weight KGs

    2.162
    Height (mm)

    66.6 (1.5U)
    Width (mm)

    482.6 (19")
    Depth (mm)

    70
    Digital Power Meter

    Digital Power Meter
