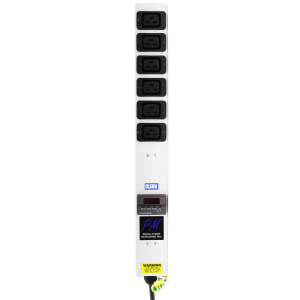

6 Way 16A IEC 60320 C19 Power Metered Sockets 16A Plug PDU - Image 2
6 Way 16A IEC 60320 C19 Power Metered Sockets 16A Plug PDU - Image 3

6 Way 16A IEC 60320 C19 Power Metered Sockets 16A Plug PDU

6 Way 16A IEC 60320 C19 Power Metered Sockets 16A Plug PDU

£169.44 Excl. VAT

In stock

£169.44 Excl. VAT

Part No. PM1086/16

  • A robust mild steel construction with light grey RAL 7035 paint finish
  • For vertical “0U” rack mounting
  • Internal wiring 2.5mm² – 20A rating
  • High-Integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
  • 3m of 3 core cable with a 16A IEC 60309 (IEC309 / BS4343 / Commando) plug
  • A digital meter with easy to read 9.4mm high digits

The Deluxe Power Meter Features:

  • Monitor Amps, volts, watts and P.F. (all True RMS)
  • The ability to either automatically scroll through the four values or to select the parameter to be displayed
  • 4x LEDs to easily identify what parameter is being measured
  • Accuracy 1% amps, volts, 2% Watts, 3% P.F.
    • Compare

    Additional information

    Previous Part No.

    AM1086/16
    Product Range

    Meter Range
    Orientation

    Vertical
    Socket Outlet Type

    C19 16A IEC 60320
    Number of Sockets

    6
    Neon

    No
    Switched

    Unswitched
    Fuse Holder

    No
    Individually Fused

    No
    Cable Length

    3M
    Plug Inlet Type

    Colour

    Light Grey (RAL 7035)
    Current Rating

    16A max.
    Operating Voltage

    Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC
    Manufactured To

    BS 5733
    Socket Outlet Compliance

    CSA, IEC 60320 C19 BEAB, UL, VDE
    Cable Compliance

    BS 6500
    UKCA / CE Compliant

    Yes
    RoHs Compliant

    Yes
    Country of Manufacture

    United Kingdom
    Weight KGs

    2.1
    Height (mm)

    551
    Width (mm)

    62
    Depth (mm)

    58
