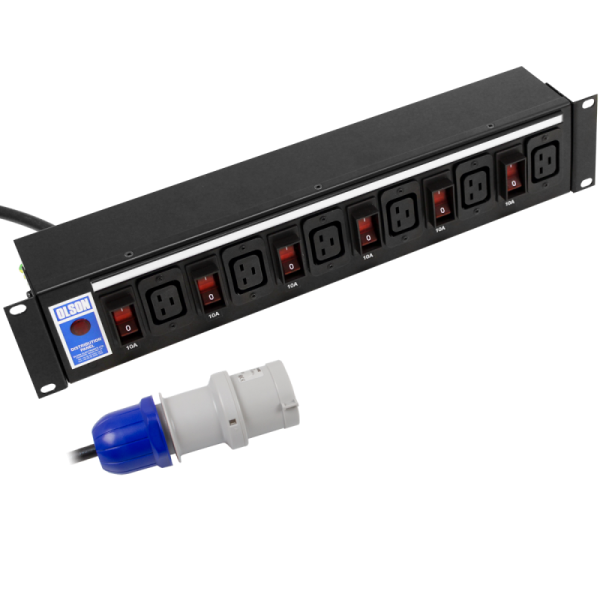

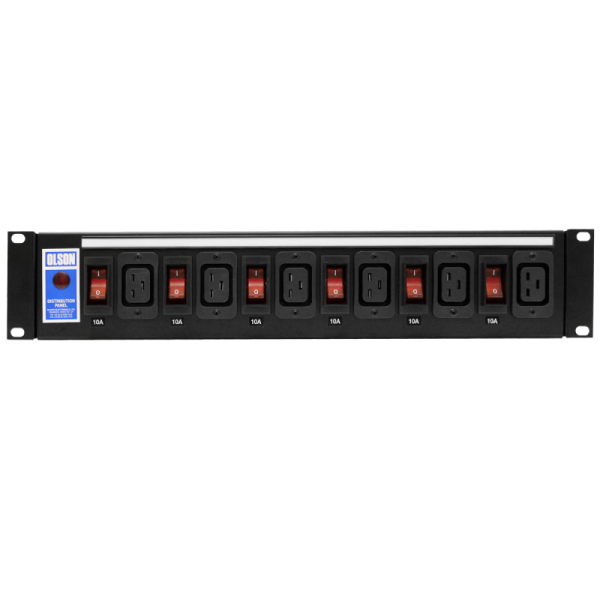

6 Way 2U 19″ 16A IEC 60320 C19 Neon Individual Circuit Breaker 32A Plug PDU Black
£300.32 Excl. VAT
Part No. DD/VOD/10/BLACK
- A robust mild steel construction with black paint finish
- 19″ 2U (88.8mm) high, 78mm deep (not including the shrouded circuit breakers or rear cable/gland), 483mm wide
- Six IEC 60320 C19 16A sockets with individual illuminated 10A circuit breakers
- The 10A circuit breakers are 2P switching, 2 pole sensing and have a protective shroud fitted to avoid accidental operation
- Red ‘mains on’ neon indicator
- Identity strip for marking individual circuits
- Internal wiring 32A rated
- High-Integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
- 3m of 3 core cable and a 32A IEC309 (BS4343) plug as standard
Compare
- Additional information
Additional information
| Product Range | 19" Rack Range – C19 Sockets |
|---|---|
| Orientation | Horizontal |
| Socket Outlet Type | C19 16A IEC 60320 |
| Number of Sockets | 6 |
| Neon | Yes |
| Switched | Individually Switched |
| Fuse Holder | No |
| Individually Fused | No |
| Cable Length | 3M |
| Plug Inlet Type | |
| Colour | Black (RAL 9005) |
| Current Rating | 16A |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | CSA, IEC 60320 C19 BEAB, UL, VDE |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 2.88 |
| Height (mm) | 88.8 (2U) |
| Width (mm) | 482.6 (19") |
| Depth (mm) | 78 |
| Digital Power Meter | None |
