8 Way 13A Power Metered Sockets Angled Left 13A Plug PDU - Image 1
8 Way 13A Power Metered Sockets Angled Left 13A Plug PDU - Image 2
8 Way 13A Power Metered Sockets Angled Left 13A Plug PDU - Image 3

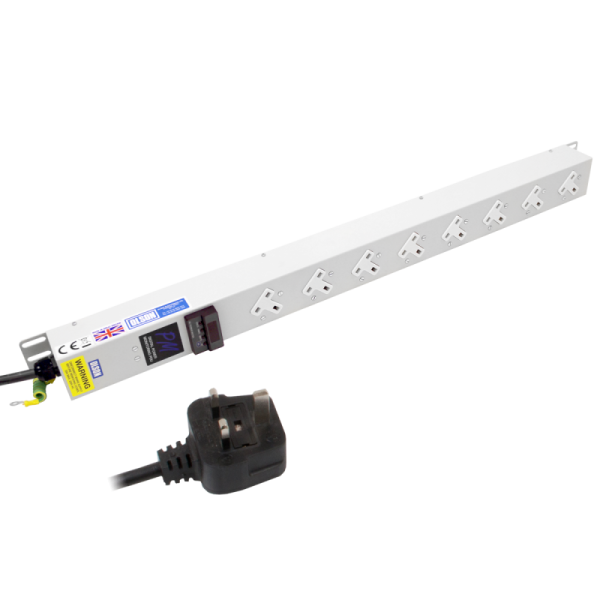

8 Way 13A Power Metered Sockets Angled Left 13A Plug PDU

8 Way 13A Power Metered Sockets Angled Left 13A Plug PDU

£191.66 Excl. VAT

In stock

£191.66 Excl. VAT

Part No. PM8/LH/13

  • A robust mild steel construction with light grey RAL 7035 paint finish
  • For vertical “0U” rack mounting
  • Internal wiring 2.5mm² – 20A rating
  • High-Integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
  • The 45 degree angled sockets allow easy, tidy installation
  • Terminated with 2m of 3 core 1.5mm² cable and 13A fused plug
  • A digital meter with easy to read 9.4mm high digits

The Deluxe Power Meter Features:

  • Monitor Amps, volts, watts and P.F. (all True RMS)
  • The ability to either automatically scroll through the four values or to select the parameter to be displayed
  • 4x LEDs to easily identify what parameter is being measured
  • Accuracy 1% amps, volts, 2% Watts, 3% P.F.
    • Compare

    Additional information

    Previous Part No.

    AM8/LH/13
    Product Range

    Meter Range
    Orientation

    Vertical
    Socket Outlet Type

    UK 13A
    Number of Sockets

    8
    Neon

    No
    Switched

    Unswitched
    Fuse Holder

    No
    Individually Fused

    No
    Cable Length

    2M
    Plug Inlet Type

    Colour

    Light Grey (RAL 7035)
    Current Rating

    13A max
    Operating Voltage

    Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC
    Manufactured To

    BS 5733
    Socket Outlet Compliance

    13 Amp Sockets – BS 1363
    Cable Compliance

    BS 6500
    UKCA / CE Compliant

    Yes
    RoHs Compliant

    Yes
    Country of Manufacture

    United Kingdom
    Weight KGs

    2.46
    Height (mm)

    835
    Width (mm)

    62
    Depth (mm)

    58
    Digital Power Meter

    Digital Power Meter
