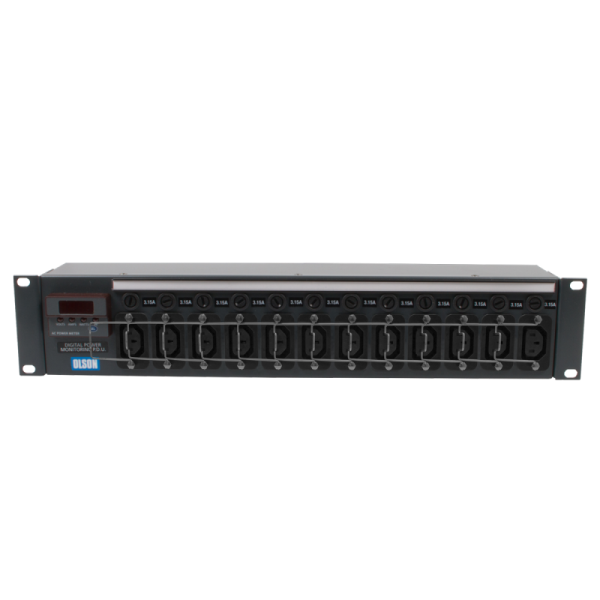

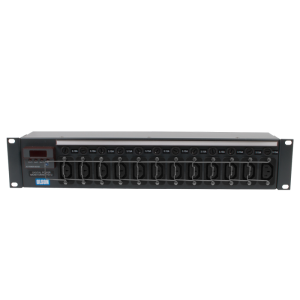

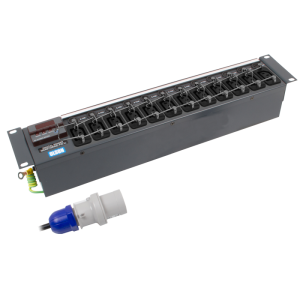

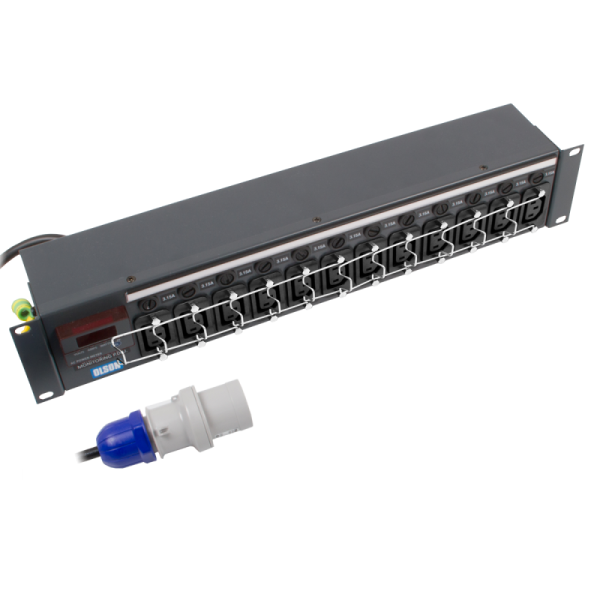

12 Way 19″ 2U 10A Power Metered IEC 60320 C13 Individually Fused Retaining Clips 16A Plug PDU

12 Way 19″ 2U 10A Power Metered IEC 60320 C13 Individually Fused Retaining Clips 16A Plug PDU

£309.91 Excl. VAT

In stock

£309.91 Excl. VAT

Part No. PM/KNBT/16/CLIPS

• A robust mild steel construction
• Anthracite RAL 7016 paint finish
• 19″ 2U (88.8mm) high
• 78mm deep (not including the cable/gland or earth tag)
• IEC 60320 C13 10A shuttered sockets with identity/designation strip
• Internal wiring 32A rating
• High-integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
• Individual 3.15A 20mm fuses fitted as standard
• 3m of 3 core cable with a 16A IEC 60309 (IEC309 / BS4343 / Commando) plug
• Identity strip for marking individual circuits
• Cable retaining clips fitted

The Deluxe Power Meter Features:
• Monitor Amps, volts, watts and P.F. (all True RMS)
• The ability to either automatically scroll through the four values or to select the parameter to be displayed
• 4x LEDs to easily identify what parameter is being measured
• Accuracy 1% amps, volts, 2% Watts, 3% P.F.

CompareCompare

Additional information

Product Range

Meter Range

Orientation

Horizontal

Socket Outlet Type

C13 10A IEC 60320

Number of Sockets

12

Neon

No

Switched

Unswitched

Fuse Holder

Yes

Fuse Rating

3.15A

Individually Fused

Yes

Cable Length

3M

Plug Inlet Type

Colour

Anthracite (RAL 7016)

Current Rating

16A max.

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Manufactured To

BS 5733

Socket Outlet Compliance

IEC 60320 C13 10A

Cable Compliance

BS 6500

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

2.48

Height (mm)

88.8 (2U)

Width (mm)

482.6 (19")

Depth (mm)

78
