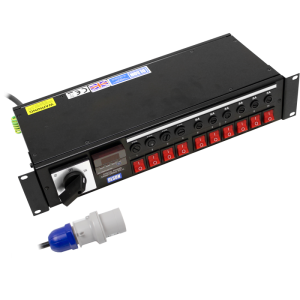

2U 19" Power Metered 6x 10A IEC 60320 C13 & 4x 16A IEC 60320 C19 Socket PDU - Image 1

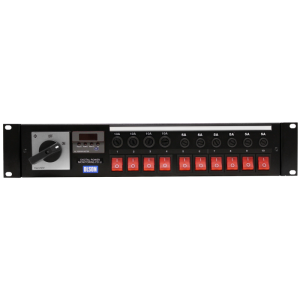

2U 19" Power Metered 6x 10A IEC 60320 C13 & 4x 16A IEC 60320 C19 Socket PDU - Image 2

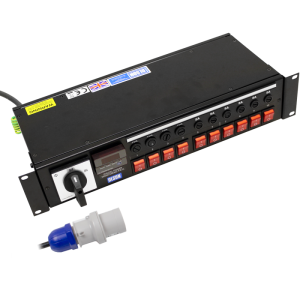

2U 19" Power Metered 6x 10A IEC 60320 C13 & 4x 16A IEC 60320 C19 Socket PDU - Image 3

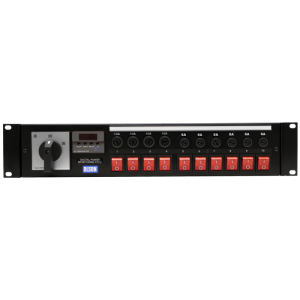

2U 19" Power Metered 6x 10A IEC 60320 C13 & 4x 16A IEC 60320 C19 Socket PDU - Image 4

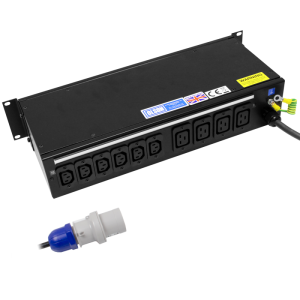

2U 19" Power Metered 6x 10A IEC 60320 C13 & 4x 16A IEC 60320 C19 Socket PDU - Image 5

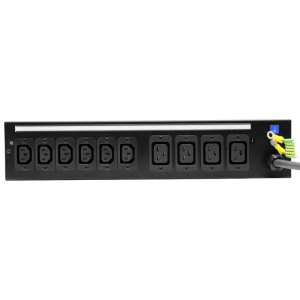

2U 19" Power Metered 6x 10A IEC 60320 C13 & 4x 16A IEC 60320 C19 Socket PDU - Image 6

2U 19″ Power Metered 6x 10A IEC 60320 C13 & 4x 16A IEC 60320 C19 Socket PDU

2U 19″ Power Metered 6x 10A IEC 60320 C13 & 4x 16A IEC 60320 C19 Socket PDU

£547.65 Excl. VAT

In stock

£547.65 Excl. VAT

Part No. PM3277/16

  • A robust mild steel construction, with a black paint finish
  • 19″ 2U (88.8mm) high, 180mm deep (not including the cable/gland or earth tag)

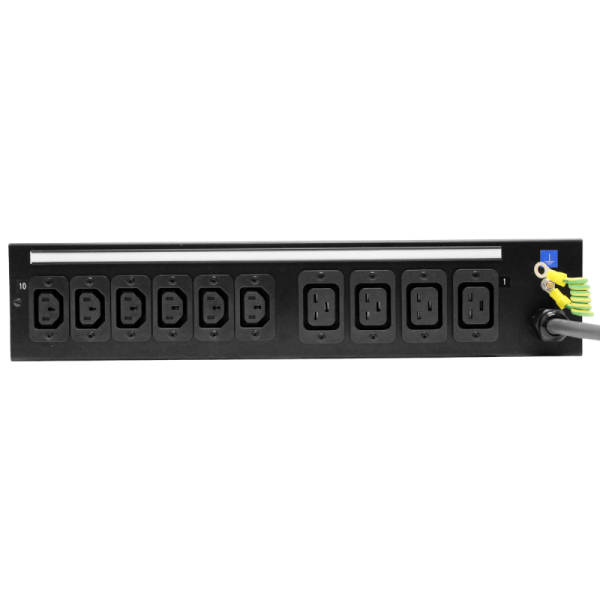

  • 4x IEC 60320 C19 16A sockets and 6x IEC 60320 C13 10A sockets mounted to the rear
  • Sockets individually fused C19 (10A rated as standard) and C13 (5A rated as standard)
  • Mains on/off switch
  • Individual front mounted illuminated double pole switches
  • Identity strip for marking individual circuits
  • High-integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
  • 3m of 3 core cable and a 16A IEC309 (BS4343) plug
  • A digital meter with easy to read 9.4mm high digits

The Deluxe Power Meter Features:

  • Monitor Amps, volts, watts and P.F. (all True RMS)
  • The ability to either automatically scroll through the four values or to select the parameter to be displayed
  • 4x LEDs to easily identify what parameter is being measured
  • Accuracy 1% amps, volts, 2% Watts, 3% P.F.
    • Compare

    Additional information

    Previous Part No.

    AM3277/16
    Product Range

    Switching Range / Meter Range / Combination PDU Range
    Orientation

    Horizontal
    Socket Outlet Type

    C13 10A + C19 16A
    Number of Sockets

    4 + 6
    Neon

    Yes
    Switched

    Individually Switched
    Fuse Holder

    Yes
    Fuse Rating

    C13: 5A – C19: 10A
    Individually Fused

    Yes
    Cable Length

    3M
    Plug Inlet Type

    Colour

    Black (RAL 9005)
    Current Rating

    16A max.
    Operating Voltage

    Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC
    Manufactured To

    BS 5733
    Socket Outlet Compliance

    10A Sockets – IEC 60320 C13
    Cable Compliance

    BS 6500
    UKCA / CE Compliant

    Yes
    RoHs Compliant

    Yes
    Country of Manufacture

    United Kingdom
    Weight KGs

    4.46
    Height (mm)

    88.8 (2U)
    Width (mm)

    482.6 (19")
    Depth (mm)

    180
    Digital Power Meter

    Digital Power Meter
