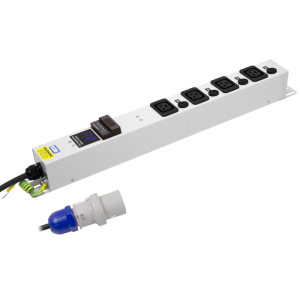

4 Way Power Metered 16A IEC 60320 C19 Unswitched Individually Fused Neon 16A Plug PDU

4 Way Power Metered 16A IEC 60320 C19 Unswitched Individually Fused Neon 16A Plug PDU

£220.60 Excl. VAT

In stock

£220.60 Excl. VAT

Part No. PM/C19/4/F/16

  • Individually fused IEC 60320 C19 16A sockets
  • Sockets fused at 10A standard
  • A robust mild steel construction with light grey RAL 7035 paint finish
  • Internal wiring 2.5mm² – 20A rating
  • High-Integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
  • 3m of 3 core cable with a 16A IEC 60309 (IEC309 / BS4343 / Commando) plug
  • A digital meter with easy to read 9.4mm high digits

The Deluxe Power Meter Features:

  • Monitor Amps, volts, watts and P.F. (all True RMS)
  • The ability to either automatically scroll through the four values or to select the parameter to be displayed
  • 4x LEDs to easily identify what parameter is being measured
  • Accuracy 1% amps, volts, 2% Watts, 3% P.F.
    • Compare

    Additional information

    Product Range

    Individually Fused C19 16A Sockets
    Orientation

    Vertical
    Socket Outlet Type

    C19 16A IEC 60320
    Number of Sockets

    4
    Neon

    No
    Switched

    Unswitched
    Fuse Holder

    Yes
    Fuse Rating

    10A
    Individually Fused

    Yes
    Cable Length

    3M
    Plug Inlet Type

    Colour

    Light Grey (RAL 7035)
    Current Rating

    16A
    Operating Voltage

    Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC
    Manufactured To

    BS 5733
    Socket Outlet Compliance

    CSA, IEC 60320 C19 BEAB, UL, VDE
    Cable Compliance

    BS 6500
    UKCA / CE Compliant

    Yes
    RoHs Compliant

    Yes
    Country of Manufacture

    United Kingdom
    Weight KGs

    2.7
    Height (mm)

    526
    Width (mm)

    62
    Depth (mm)

    58
    Fixing Centres

    510
    Digital Power Meter

    Digital Power Meter
