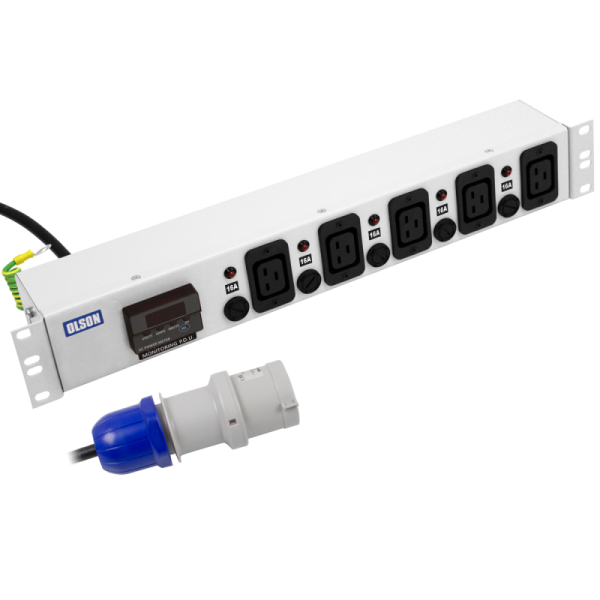

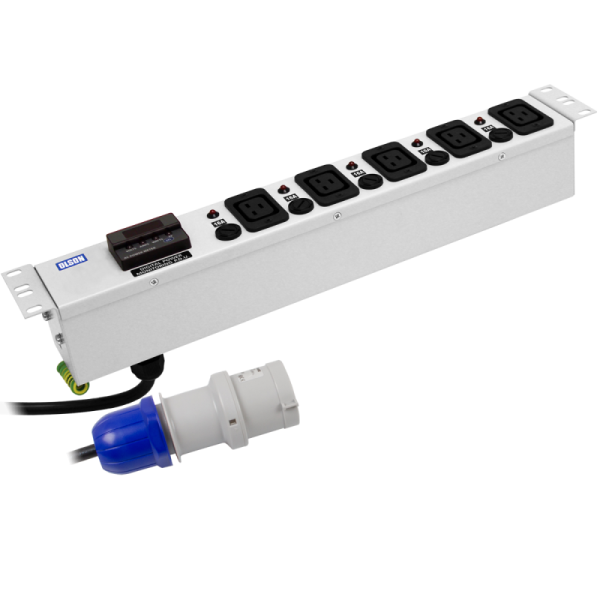

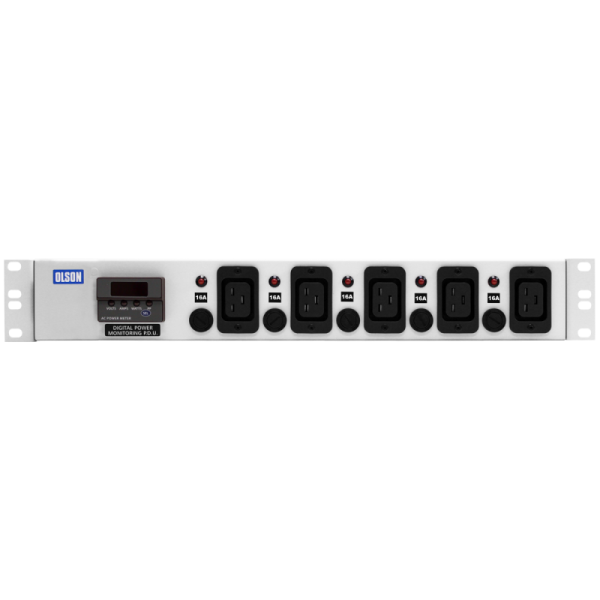

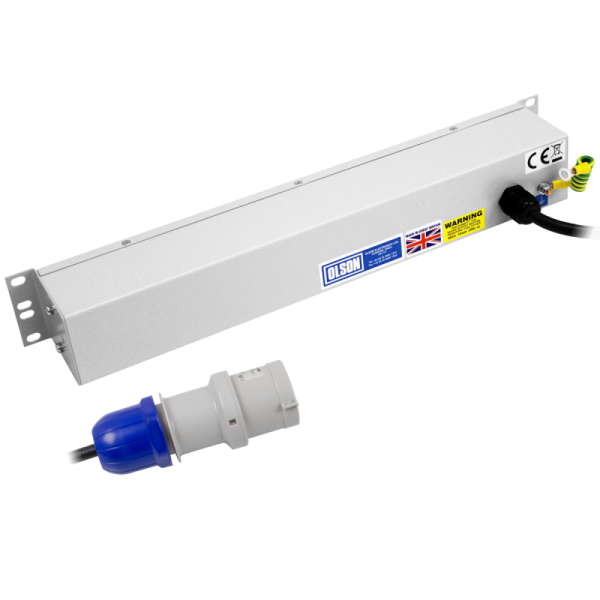

5 Way 1.5U 19″ Power Metered 16A IEC 60320 C19 Unswitched Individual Neon & Fused PDU

5 Way 1.5U 19″ Power Metered 16A IEC 60320 C19 Unswitched Individual Neon & Fused PDU

£243.53 Excl. VAT

In stock

£243.53 Excl. VAT

Part No. PM1051/32/NOSWITCH

• 32A rated PDU
• Individually fused IEC 60320 C19 16A sockets
• Sockets fused at 16A standard
• A robust mild steel construction with light grey RAL 7035 paint finish
• Internal wiring 4mm² – 32A rating
• High-Integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
• 19″ wide 1.5U panel
• 3m of 3 core cable with a 32A IEC 60309 (IEC309 / BS4343 / Commando) plug
• A digital meter with easy to read 9.4mm high digits

The Deluxe Power Meter Features:
• Monitor Amps, volts, watts and P.F. (all True RMS)
• The ability to either automatically scroll through the four values or to select the parameter to be displayed
• 4x LEDs to easily identify what parameter is being measured
• Accuracy 1% amps, volts, 2% Watts, 3% P.F.

View cart
Compare

Additional information

Previous Part No.

AM1051/32 – PM1051/32/NO-SWITCH

Product Range

PM Meter Range

Orientation

Horizontal

Socket Outlet Type

C19 16A IEC 60320

Number of Sockets

5

Neon

Yes

Switched

Unswitched

Fuse Holder

Yes

Fuse Rating

16A

Individually Fused

Yes

Cable Length

3M

Plug Inlet Type

Colour

Light Grey (RAL 7035)

Current Rating

16A

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Manufactured To

BS 5733

Socket Outlet Compliance

CSA, IEC 60320 C19 BEAB, UL, VDE

Cable Compliance

BS 6500

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

2.2

Height (mm)

66.6 (1.5U)

Width (mm)

482.6 (19")

Depth (mm)

70

Digital Power Meter

Digital Power Meter
