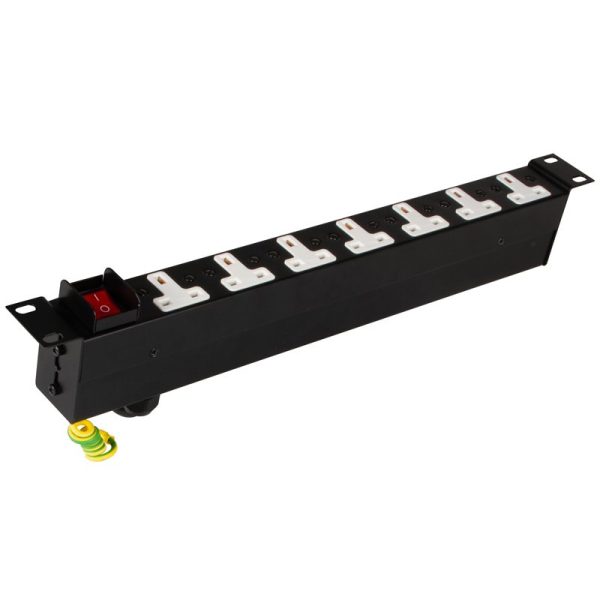

7 Way 19 Inch 1U Horizontal 13A Rack Mount Illuminated Main Switch 16A Plug PDU
£81.17 Excl. VAT
Part No. 13A1U/07/MS/16
- Independently tested & British made
- 1U 19 Inch Rack 7 Way 13A UK Outlet
- 16A IEC60309 plug with 3M Lead
- Illuminated On / Off switch with shroud
- Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
- Robust Zintec steel construction
- Finished in tough powder coat black
- Compact depth of just 68mm
- Manufactured and designed in the UK
- Custom options available
Compare
- Additional information
Additional information
| Product Range | 1U |
|---|---|
| Orientation | Horizontal |
| Socket Outlet Type | UK 13A |
| Number of Sockets | 7 |
| Neon | Illuminated Main Switch |
| Switched | Main Switch |
| Fuse Holder | No |
| Individually Fused | No |
| Cable Length | 3M |
| Plug Inlet Type | |
| Colour | Black (RAL 9005) |
| Current Rating | 16A max. |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | 13 Amp Sockets – BS 1363 |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 1.985 |
| Height (mm) | 44 |
| Width (mm) | 482 |
| Depth (mm) | 68 |
| Fixing Centres | 467 |
| Digital Power Meter | None |
