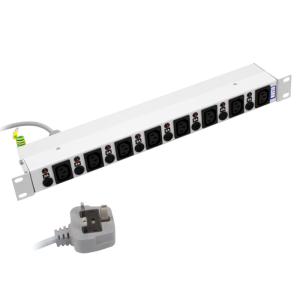

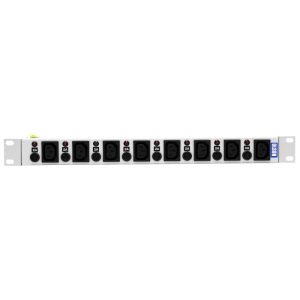

8 Way 19″ 1U 10A IEC 60320 C13 Individual Neon & Fused 13A Plug PDU
£264.86 Excl. VAT
Part No. 9008/CABLE
- A robust mild steel construction with light grey RAL 7035 paint finish
- Internal wiring 2.5mm² – 20A rating
- Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
- Individually fused sockets with individual neon’s
- Available with either a 2m 1.5mm² 3 core PVC cable terminated with a 13A fused plug or a rear mounted C14 10A inlet
Compare
- Additional information
Additional information
| Product Range | 19" Rack Range |
|---|---|
| Orientation | Horizontal |
| Socket Outlet Type | C13 10A IEC 60320 |
| Number of Sockets | 8 |
| Neon | Yes |
| Switched | Unswitched |
| Fuse Holder | Yes |
| Fuse Rating | 2A |
| Individually Fused | Yes |
| Cable Length | 2M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 10A max |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | IEC 60320 C13 10A (CEE22) |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 1.35 |
| Height (mm) | 44.4 (1U) |
| Width (mm) | 482.6 (19") |
| Depth (mm) | 68 |
| Digital Power Meter | None |
