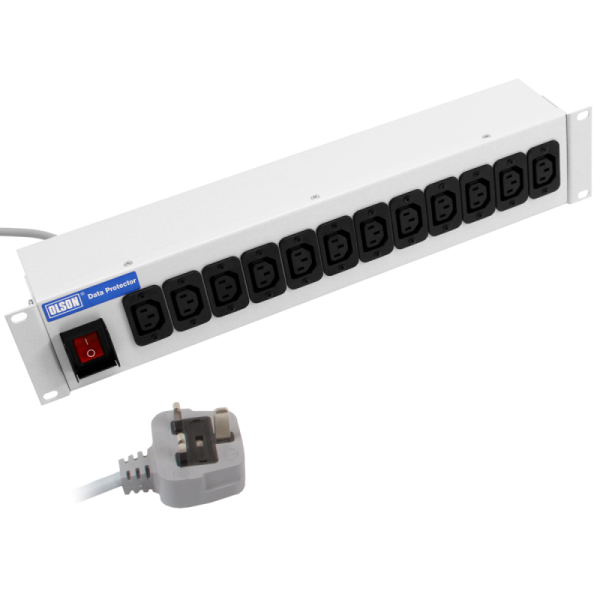

12 Way 19″ 2U 10A IEC 60320 C13 RF Filtered Surge Protected Illuminated Main Switch Fused 13A Plug PDU

12 Way 19″ 2U 10A IEC 60320 C13 RF Filtered Surge Protected Illuminated Main Switch Fused 13A Plug PDU

£197.23 Excl. VAT

In stock

£197.23 Excl. VAT

Part No. FU13A/12

  • A robust mild steel construction with light grey RAL 7035 paint finish
  • Earth bonded with external M5 earth stud fitted with 250mm earth lead and terminated with a M6 earth tag
  • 16A illuminated double pole mains switch
  • 13A mains filter units 2U high
  • Brackets on each side for easy fixing/installation
  • 2m cable: PVC (1.5mm² 3 core) terminated with a 13A fused plug

Surge Filter:

  • All modes L-N, L-E, N-E
  • Maximum operating voltage – 275V rms ac
  • Transient energy absorption – 3 x 140J
  • Transient peak current – (8/20uS) – 6500A
  • Impulse response time – <50nS
  • Varistor voltage @ 1mA dc test current – 430V
  • Maximum clamping voltage @ 100A (8/20uS) – 710V

    • RF Filter:

  • Operating voltage up to 250V at max 400Hz
  • Filter rated current 13A @ 400ºC, 11.5A @ 25ºC
  • Leakage current 2 x 0.2mA max @ 220V 50Hz
  • Fitted with ZNR voltage transient and earthline choke
  • Standard spec. Z280G
  • Max continuous voltage 320V AC rms @ 25ºC
  • Max continuous voltage 416V DC @25ºC
  • Varistor 450V min @ 1mA
  • Energy 140 Joules 10/10000
  • 800V clamping voltage @ 100A
  • Max 800mW continuous
  • UL, CSA, VDE
    • Compare

    Additional information

    Product Range

    IEC 60320 C13 Sockets with Data Protector
    Orientation

    Horizontal
    Socket Outlet Type

    C13 10A IEC 60320
    Number of Sockets

    12
    Neon

    Yes
    Switched

    Main Switch
    Fuse Holder

    No
    Individually Fused

    No
    Cable Length

    2M
    Plug Inlet Type

    Colour

    Light Grey (RAL 7035)
    Current Rating

    10A max
    Operating Voltage

    Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC
    Manufactured To

    BS 5733
    Socket Outlet Compliance

    IEC 60320 C13 10A (CEE22)
    Cable Compliance

    BS 6500
    UKCA / CE Compliant

    Yes
    RoHs Compliant

    Yes
    Country of Manufacture

    United Kingdom
    Weight KGs

    2.6
    Height (mm)

    88.8 (2U)
    Width (mm)

    482.6 (19")
    Depth (mm)

    75
    Digital Power Meter

    None
