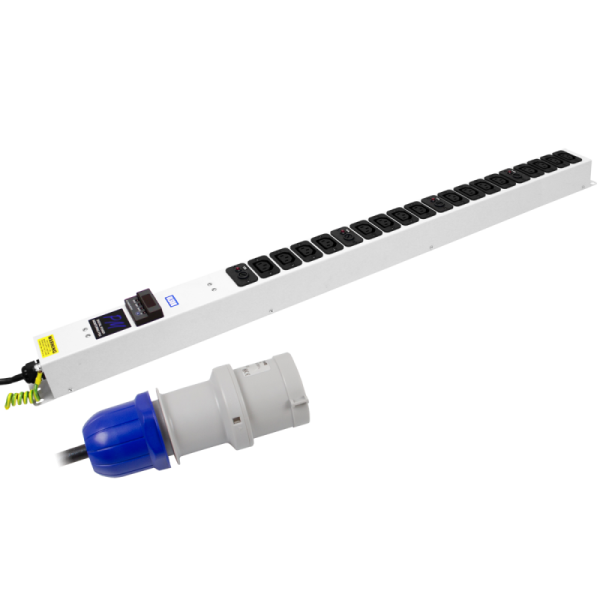

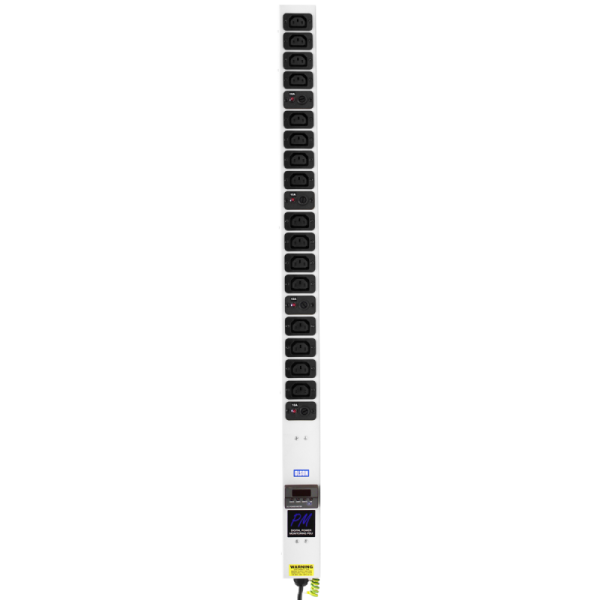

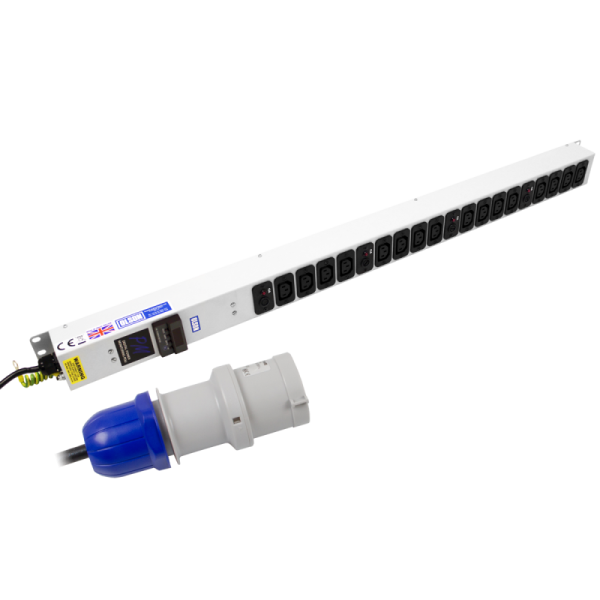

16 Way 10A IEC 60320 C13 4x Neon Fused Power Metered Sockets 32A Plug PDU
£289.04 Excl. VAT
Part No. PM1083/4F/32
- A robust mild steel construction with light grey RAL 7035 paint finish
- For vertical “0U” rack mounting
- IEC 60320 C13 10A shuttered sockets
- Sockets are fused in four banks with 10A fuses and neons
- High-Integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
- 3m of 3 core cable with a 32A IEC 60309 (IEC309 / BS4343 / Commando) plug
- A digital meter with easy to read 9.4mm high digits
The Deluxe Power Meter Features:
Compare
- Additional information
Additional information
| Product Range | Meter Range |
|---|---|
| Orientation | Vertical |
| Socket Outlet Type | C13 10A IEC 60320 |
| Number of Sockets | 16 |
| Neon | Yes |
| Switched | Unswitched |
| Fuse Holder | Yes |
| Fuse Rating | 10A |
| Individually Fused | No |
| Cable Length | 3M |
| Plug Inlet Type | |
| Colour | Light Grey (RAL 7035) |
| Current Rating | 32A max. |
| Operating Voltage | Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC |
| Manufactured To | BS 5733 |
| Socket Outlet Compliance | IEC 60320 C13 10A (CEE22) |
| Cable Compliance | BS 6500 |
| UKCA / CE Compliant | Yes |
| RoHs Compliant | Yes |
| Country of Manufacture | United Kingdom |
| Weight KGs | 3.5 |
| Height (mm) | 968 |
| Width (mm) | 62 |
| Depth (mm) | 58 |
| Fixing Centres | 952 |
| Digital Power Meter | Digital Power Meter |
