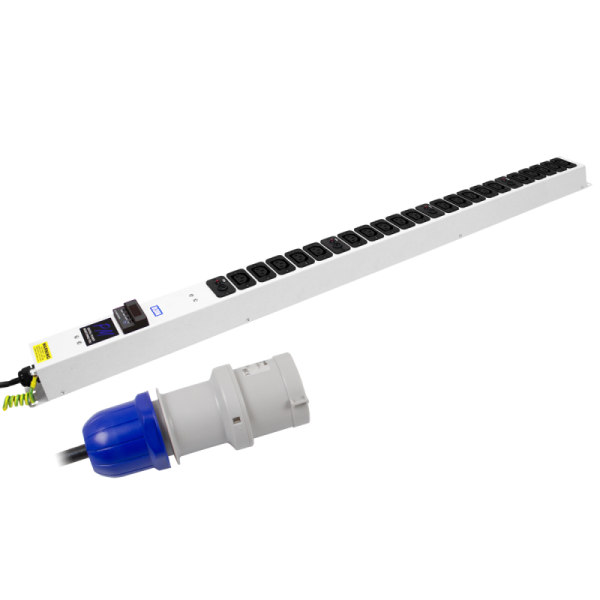

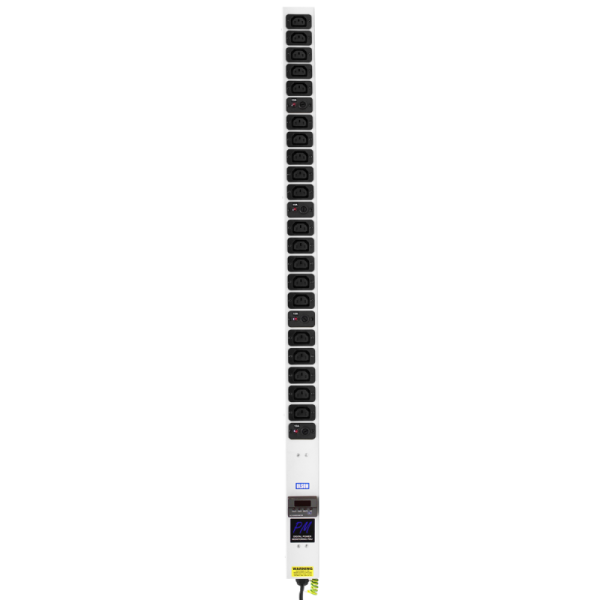

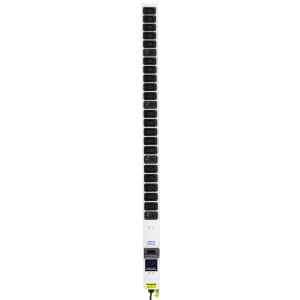

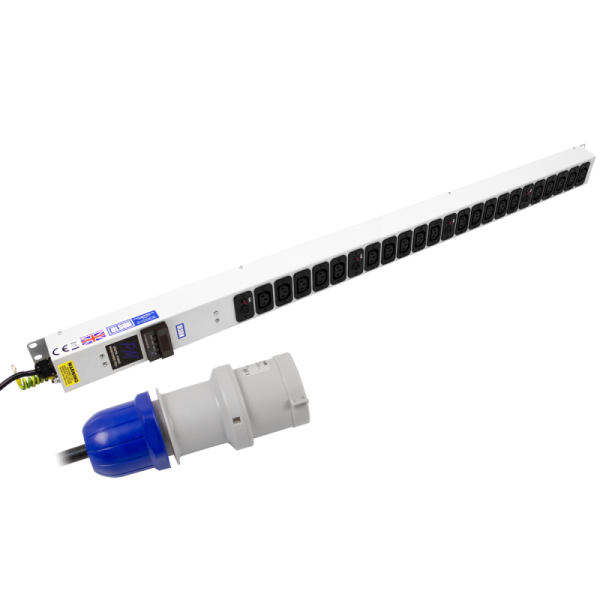

20 Way 10A IEC 60320 C13 4x Neon Fused Power Metered Sockets 32A Plug PDU

20 Way 10A IEC 60320 C13 4x Neon Fused Power Metered Sockets 32A Plug PDU

£257.04 Excl. VAT

In stock

£257.04 Excl. VAT

Part No. PM1085/4F/32

• A robust mild steel construction with light grey RAL 7035 paint finish
• For vertical “0U” rack mounting
• IEC 60320 C13 10A shuttered sockets
• Sockets are fused in four banks with 10A fuses and neons
• High-Integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
• 3m of 3 core cable with a 32A IEC 60309 (IEC309 / BS4343 / Commando) plug
• A digital meter with easy to read 9.4mm high digits

The Deluxe Power Meter Features:
• Monitor Amps, volts, watts and P.F. (all True RMS)
• The ability to either automatically scroll through the four values or to select the parameter to be displayed
• 4x LEDs to easily identify what parameter is being measured
• Accuracy 1% amps, volts, 2% Watts, 3% P.F.

View cart
Compare

Additional information

Product Range

Meter Range

Orientation

Vertical

Socket Outlet Type

C13 10A IEC 60320

Number of Sockets

20

Neon

Yes

Switched

Unswitched

Fuse Holder

Yes

Fuse Rating

10A

Individually Fused

No

Cable Length

3M

Plug Inlet Type

Colour

Light Grey (RAL 7035)

Current Rating

32A max.

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Manufactured To

BS 5733

Socket Outlet Compliance

IEC 60320 C13 10A (CEE22)

Cable Compliance

BS 6500

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

3.9

Height (mm)

1120

Width (mm)

62

Depth (mm)

58

Fixing Centres

1104

Digital Power Meter

Digital Power Meter
