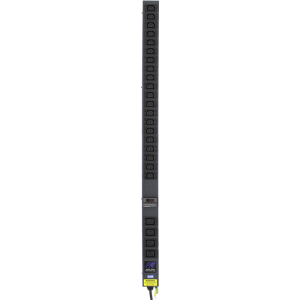

20x 10A IEC 60320 C13 & 4x 16A IEC 60320 C19 Socket Power Metered 16A Plug PDU

20x 10A IEC 60320 C13 & 4x 16A IEC 60320 C19 Socket Power Metered 16A Plug PDU

£302.09 Excl. VAT

In stock

£302.09 Excl. VAT

Part No. PM/COM20-4/16

• A robust mild steel construction
• Anthracite RAL 7016 paint finish
• 16A rated unit
• A combination of IEC 60320 C13 10A and C19 16A sockets
• High-integrity dual earthing and external M5 earth stud with 250mm long earth lead for maximum safety
• 3m of 3 core cable and a 16A IEC309 / BS4343 (Commando style) plug
• A digital meter with easy to read 9.4mm high digits

The Deluxe Power Meter Features:
• Monitor Amps, volts, watts and P.F. (all True RMS)
• The ability to either automatically scroll through the four values or to select the parameter to be displayed
• 4x LEDs to easily identify what parameter is being measured
• Accuracy 1% amps, volts, 2% Watts, 3% P.F.

View cart
Compare

Additional information

Previous Part No.

PM/COM20+4/16

Product Range

Vertical Power Meter Combination PDU Range

Orientation

Vertical

Socket Outlet Type

C13 10A + C19 16A

Number of Sockets

20 + 4

Neon

No

Switched

Unswitched

Fuse Holder

No

Individually Fused

No

Cable Length

3M

Plug Inlet Type

Colour

Anthracite (RAL 7016)

Current Rating

16A max.

Operating Voltage

Normal Operating Voltage: 230VAC – Maximum Operating Voltage: 250VAC

Manufactured To

BS 5733

Socket Outlet Compliance

10A Socket : IEC 60320 C13 – 16A Socket: IEC 60320 C19

Cable Compliance

BS 6500

UKCA / CE Compliant

Yes

RoHs Compliant

Yes

Country of Manufacture

United Kingdom

Weight KGs

4.2

Height (mm)

1114

Width (mm)

60

Depth (mm)

50

Fixing Centres

1098

Digital Power Meter

Digital Power Meter
